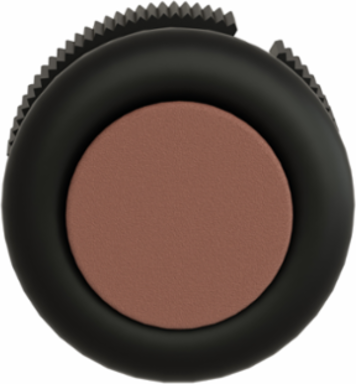

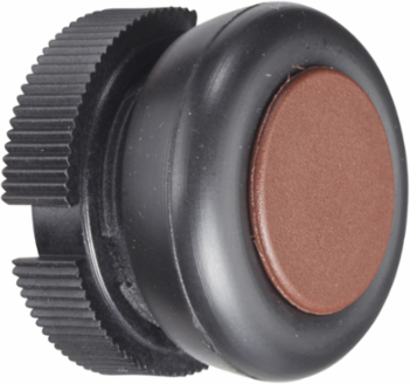

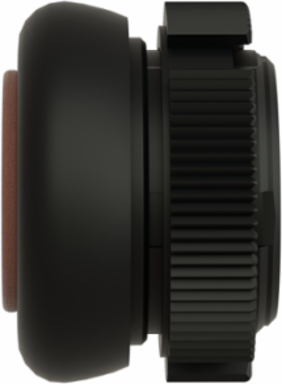

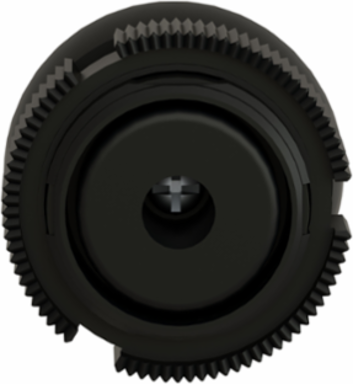

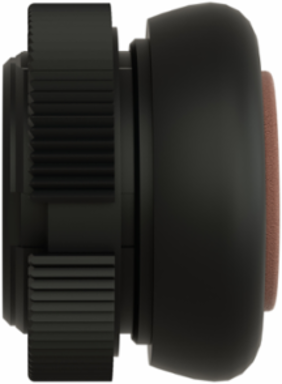

Schneider Electric XACA9419 Harmony XAC Push Button Head, Plastic, Brown, IP65, Booted
- MPN: XACA9419
- PPN: SCH-XACA9419
CAD
$11.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony XAC Push Button Head from Schneider Electric is designed for durability and efficiency in various automation and control applications. This push button head features a robust plastic construction, ensuring resilience against harsh conditions, while its booted design provides an added layer of protection against dust and water ingress, achieving an IP65 rating. The rich brown color not only offers an aesthetically pleasing option for your setup but also enhances visibility in industrial environments. Ideal for integration within control panels, this component supports seamless operation and user interaction in demanding scenarios.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Important Information Attributes
- Certificate Agency
- CSA C22.2 No 14, IEC 60204-32, UL 508, IEC 60947-5-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.00187805
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.062465
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Marking
- unmarked
- Operator Additional Information
- booted
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XAC
- Sale Per Indivisible Quantity
- 10
- Software Version
- EIME v5.9.1
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Pep Code
- ENVPEP0709005EN
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Manufacturing [A1-a3]
- 5.139
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 0.8083
Carbon Footprint Of The Distribution Phase [A4]0.0011612, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000494075, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Component NameXACA
Mounting Locationfront of enclosure
Overvoltage Categoryclass II conforming to IEC 61140
Product Or Component Typehead for push-button
ReturnabilityYes
Shock Resistance100 gn IEC 60068-2-27
Sustainable PackagingNo
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis head is united with emergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60204-1 and EN/ISO & Machinery Directive 2006/42/EC5 during 20 years
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Espagnac, France
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Cap/Operator Or Lens Colourbrown
Package Weight(Lbs)9.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]0.5691
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.0655536575
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- XACA..
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
