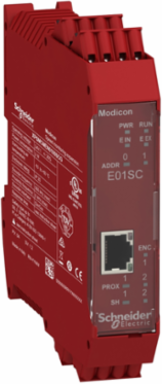

Schneider Electric XPSMCMEN0100SCG Speed monitoring 1 Sin/Cos encoder expansion module with spring term
- MPN: XPSMCMEN0100SCG
- PPN: SCH-XPSMCMEN0100SCG
CAD
$1441.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Speed monitoring 1 Sin/Cos encoder expansion module with spring term
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| Depth | 22.5 mm |
|---|
Complementary Attributes
| Maximum Input Frequency | 5 kHz sensor, 500 kHz encoder SinCos |
|---|
| Integrated Connection Type | backplane expansion bus |
|---|
Important Information Attributes
| Cable Cross Section | 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel |
|---|---|
| Local Signalling | 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 1 LED yellow ENC encoder connection status2 LEDs yellow PROX proximity sensors connection status2 LEDs yellow SH speed monitoring status |
| Vibration Resistance | +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1 |
| Connections - Terminals | 1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.39226521239886447 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 9.590452951561938 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | e |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3 |
| Insulation | 250 V AC between power supply and housing EN/IEC 61800-5-1 |
| Number Of Terminal Blocks | 4 |
| Power Consumption In W | 3 W |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quality Labels | CE |
| Returnability | No |
| Service Life | 20 year(s) |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 138 kg CO2 eq. |
| Pep Code | ENVPEP2606036_V1 |
| Pep Verification Date | 2026-06-22 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 1020 |
| Energy Model - Manufacturing [A1-a3] | Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT |
| Energy Model - Use [B6] | Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27 |
| Recyclability Potential In % | 2 |
| Width Nominal | 114.5 mm |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Package Weight(Lbs) | 241.0 g |
| Warranty (In Months) | 18 |
| Electrical Connection | 1 connector RJ45 EIA/TIA-568-A, spring terminal |
|---|---|
| Safety Level | can reach category 4 EN/ISO 13849-1, can reach PL = e EN/ISO 13849-1type 4 EN/IEC 61496-1SILCL 3 IEC 62061 |
| Certificate Agency | RCM, cULus, TÜV |
| Carbon Footprint Of The Distribution Phase [A4] | 0.07839800495082133, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.21969641551918612, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 127 kg CO2 eq., 127.2214464091827 |
| Local Publishable Date | 2025-11-25 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Device Short Name | XPSMCM |
| Function Of Module | speed monitoring |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Overvoltage Category | II |
| Power Dissipation In W | 3 W |
| Product Or Component Type | safe speed monitoring module |
| Range Of Product | Preventa Safety automation |
| Sensor Type | inductive proximity sensor |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 262.8 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 99 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 61800-5 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -10-55 °C-10-55 °C |
| Environmental Disclosure | ENVPEP2606036_V1 |
| Ip Degree Of Protection | IP20 enclosure) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2606036_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 137.5022589936135 |
| Ambient Air Temperature For Storage | -20-85 °C-20-85 °C |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 10-95 % |
| Pep Verification Date | 2026-06-22 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | safe speed monitoring module |
|---|
| Range Of Product | Preventa Safety automation |
|---|
ETIM
| ETIM 8 | EC001449 |
|---|
| ETIM 9 | EC001449 |
|---|
Input Attributes
| Maximum Input Frequency | 5 kHz sensor, 500 kHz encoder SinCos |
|---|
| Discrete Input Voltage | 24 V DC |
|---|
