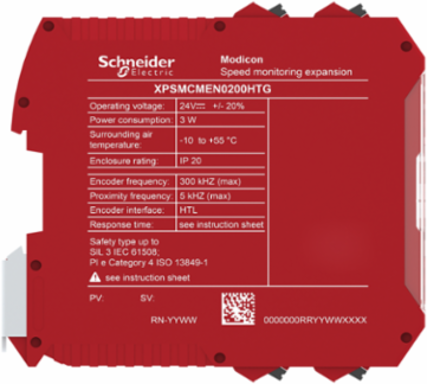

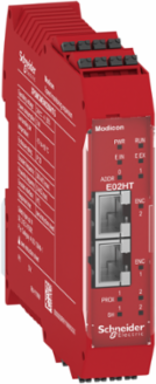

Schneider Electric XPSMCMEN0200HTG expansion module, Modicon MCM, speed monitoring, 2 HTL encoder, spring
- MPN: XPSMCMEN0200HTG
- PPN: SCH-XPSMCMEN0200HTG
CAD
$1441.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
expansion module, Modicon MCM, speed monitoring, 2 HTL encoder, spring
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Italy
Depth22.5 mm
Complementary Attributes
- Maximum Input Frequency
- 5 kHz sensor, 300 kHz encoder HTL
Integrated Connection Typebackplane expansion bus
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cable Cross Section
- 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel
- Local Signalling
- 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 2 LEDs yellow PROX proximity sensors connection status2 LEDs yellow SH speed monitoring status2 LEDs yellow ENC encoder connection status
- Vibration Resistance
- +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
- Connections - Terminals
- 1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.4202841561416405
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.275485305244933
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1847
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Device Short Name
- XPSMCM
- Function Of Module
- speed monitoring
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Overvoltage Category
- II
- Power Dissipation In W
- 3 W
- Product Or Component Type
- safe speed monitoring module
- Range Of Product
- Preventa Safety automation
- Sensor Type
- inductive proximity sensor
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 262.8
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 99 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 61800-5
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connection2 connectors RJ45 EIA/TIA-568-A, spring terminal
Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061
Certificate AgencycULus, TÜV, RCM
Carbon Footprint Of The Distribution Phase [A4]0.08399786244730857, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2353890166276994, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]127 kg CO2 eq., 127.2214464091827
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Insulation250 V AC between power supply and housing IEC 61800-5-1
Number Of Terminal Blocks4
Power Consumption In W3 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
ReturnabilityNo
Service Life20 year(s)
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint138 kg CO2 eq.
Pep CodeENVPEP2606036_V1
Pep Verification Date2026-06-22
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y1020
Energy Model - Manufacturing [A1-a3]Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
Energy Model - Use [B6]Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27
Recyclability Potential In %2
Width Nominal114.5 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Package Weight(Lbs)242.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -10-55 °C-10-55 °C
- Environmental Disclosure
- ENVPEP2606036_V1
- Ip Degree Of Protection
- IP20 enclosure)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2606036_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint138.23660274964428
Ambient Air Temperature For Storage-20-85 °C-20-85 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
Pep Verification Date2026-06-22
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- safe speed monitoring module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Input Attributes
- Maximum Input Frequency
- 5 kHz sensor, 300 kHz encoder HTL
Discrete Input Voltage24 V DC
