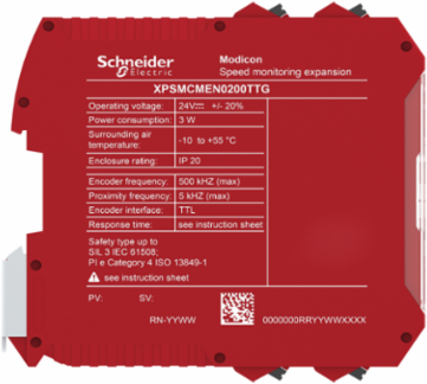

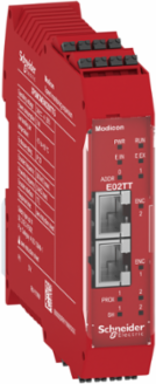

Schneider Electric XPSMCMEN0200TTG Speed monitoring 2 TTL encoder expansion module with spring term
- MPN: XPSMCMEN0200TTG
- PPN: SCH-XPSMCMEN0200TTG
CAD
$1758.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Speed monitoring 2 TTL encoder expansion module with spring term
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
Depth22.5 mm
Complementary Attributes
- Maximum Input Frequency
- 5 kHz sensor, 500 kHz encoder TTL
Integrated Connection Typebackplane expansion bus
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² flexible without cable end, 0.2-2.5 mm² solid without cable end0.25-2.5 mm² flexible with cable end, with bezel, 0.25-2.5 mm² flexible with cable end, without bezel0.5-1 mm² flexible with cable end, with double bezel
- Local Signalling
- 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 2 LEDs yellow PROX proximity sensors connection status2 LEDs yellow SH speed monitoring status2 LEDs yellow ENC encoder connection status
- Vibration Resistance
- +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
- Connections - Terminals
- 1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.4202841561416405
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.275485305244933
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- e
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Number Of Terminal Blocks
- 4
- Power Consumption In W
- 3 W
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Returnability
- No
- Service Life
- 20 year(s)
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 138 kg CO2 eq.
- Pep Code
- ENVPEP2606036_V1
- Pep Verification Date
- 2026-06-22
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 1020
- Energy Model - Manufacturing [A1-a3]
- Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
- Energy Model - Use [B6]
- Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27
- Recyclability Potential In %
- 2
- Width Nominal
- 114.5 mm
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Package Weight(Lbs)
- 246.0 g
- Warranty (In Months)
- 18
Electrical Connection2 connectors RJ45 EIA/TIA-568-A, spring terminal
Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061
Certificate AgencyTÜV, cULus, RCM
Carbon Footprint Of The Distribution Phase [A4]0.08399786244730857, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2353890166276994, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]127 kg CO2 eq., 127.2214464091827
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1847
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameXPSMCM
Function Of Modulespeed monitoring
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Power Dissipation In W3 W
Product Or Component Typesafe speed monitoring module
Range Of ProductPreventa Safety automation
Sensor Typeinductive proximity sensor
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh262.8
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal99 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -10-55 °C-10-55 °C
- Environmental Disclosure
- ENVPEP2606036_V1
- Ip Degree Of Protection
- IP20 enclosure)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2606036_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint138.23660274964428
Ambient Air Temperature For Storage-20-85 °C-20-85 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
Pep Verification Date2026-06-22
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- safe speed monitoring module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Input Attributes
- Maximum Input Frequency
- 5 kHz sensor, 500 kHz encoder TTL
Discrete Input Voltage24 V DC
