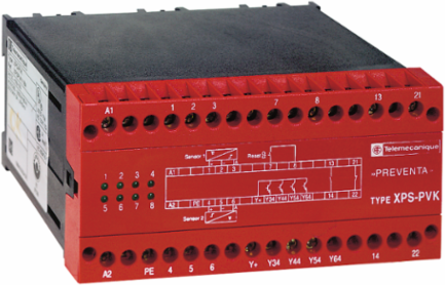

Telemecanique Sensors XPSPVK1184 Preventa Safety Module 24V DC - Dynamic Monitoring, 817.2g, IP40
- MPN: XPSPVK1184
- PPN: SCH-XPSPVK1184
CAD
$1931.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Preventa Safety Module from Schneider Electric is designed to provide reliable safety solutions for double-bodied solenoid valves operating at 24 V DC. This advanced module ensures optimal performance while fulfilling safety requirements in various industrial applications. It is an essential component for systems that demand both efficiency and safety, making it a critical choice for professionals seeking robust automation and control solutions.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 24 V DC - 10...10 %
- Product Or Component Type
- Preventa safety module
- Safety Module Name
- XPSPVK
- Output Type
- relay, 1 NO transfer function + 1 NC feedback loop, volt-free
- Safety Reliability Data
- MTTFd = 90.2 years ISO 13849-1 || DC = 0...99 % ISO 13849-1 || PFHd = 1.25E-8 1/h IEC 62061
- Safety Level
- can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061
Range Of ProductPreventa Safety automation
Enclosure Typeremovable
Number Of Additional Circuits4 solid state outputs
Safety Module Applicationfor dynamic monitoring of double-bodied solenoid valves
Function Of Moduledynamic monitoring of double-bodied solenoid valves
Complementary
- Height
- 73 mm
- Power Consumption In W
- 9 W
- Minimum Output Current
- 10 mA relay output
- Associated Fuse Rating
- 4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
- Net Weight
- 817.2 g
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
- Number Of Terminal Blocks
- 32
- Width
- 152 mm
- Breaking Capacity
- 10 mA 48 V solid state output circuit || 20 mA 24 V solid state output circuit || 1.5 A 24 V DC-13)50 ms relay output
- Breaking Capacity
- 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
Mounting Support35 mm symmetrical DIN rail
Minimum Output Voltage17 V relay output
[Ith] Conventional Free Air Thermal Current2.5 A
[Uimp] Rated Impulse Withstand Voltage4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
Connections - Terminalscaptive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² with cable end || captive screw clamp terminals, 2 x 2.5 mm² without cable end
Local Signalling8 LEDs
Enclosure Materialpolycarbonate
Depth118 mm
Maximum Response Time On Input Open40 ms
Environment
- Product Certifications
- UL || TÃœV || CSA
- Standards
- IEC 60947-5-1 || IEC 692 || IEC 60204-1
- Ambient Air Temperature For Storage
- -25-85 °C
Ambient Air Temperature For Operation-10-55 °C
Ip Degree Of ProtectionIP10 terminals)IEC 60529 || IP40 enclosure)IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1408008EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1408008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
