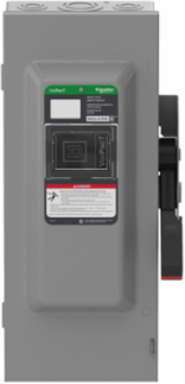

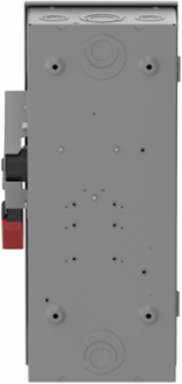

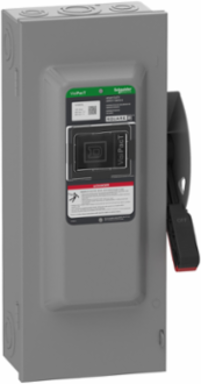

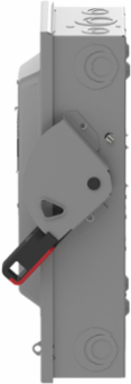

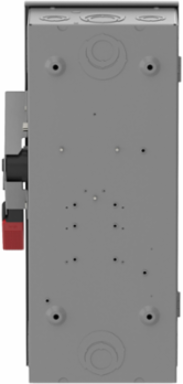

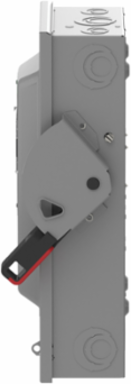

Schneider Electric VH363GL Heavy Duty Safety Switch 100A 600V 3-Pole NEMA 1 with Viewing Window
- MPN: VH363GL
- PPN: SCH-VH363GL
CAD
$657.63
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 100A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
Features
- The VH363GL is a 100-Amp, 3-pole, 600V AC heavy-duty safety switch designed to serve as a high-performance disconnect for industrial motors and power circuits. Engineered for frequent operation, it provides a visible "gap" when the blades are open, offering the highest level of safety for maintenance personnel working on downstream machinery.
- Part of the new Schneider Electric Square D VisiPact line, this switch features a specialized viewing window. This allows operators to visually verify that the high-conductivity copper blades have physically disconnected from the source without opening the enclosure, significantly reducing the risk of Arc Flash exposure during routine safety checks.
- This unit is housed in a NEMA Type 1 enclosure, which is designed primarily for indoor use in commercial and industrial settings. It protects the internal components from dust, dirt, and light splashing, making it the standard choice for manufacturing floors, mechanical rooms, and warehouses where weatherproofing is not required.
- The "GL" designation confirms that this switch comes factory-installed with a Grounding Lug kit. This simplifies the installation process for electricians by providing a dedicated, code-compliant termination point for the equipment grounding conductor, ensuring a low-impedance path to ground and improved system safety.
- This is a fusible safety switch, meaning it utilizes three internal fuses (sold separately) to provide overcurrent and short-circuit protection. When paired with high-interrupting Class R or Class J fuses, the VH363GL can achieve a Short Circuit Current Rating (SCCR) of up to 200,000 Amps, shielding sensitive industrial equipment from catastrophic electrical failure.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|

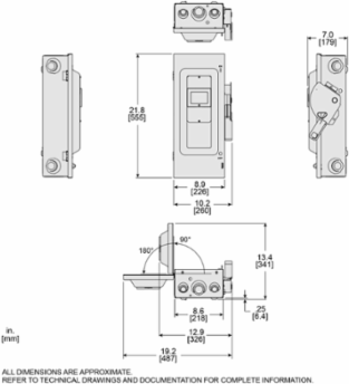

| Depth | 7.04 in |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Fuse Type | H or K, R or J |
| Tightening Torque | 50-50 lbf.in (1 AWG...3/0 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The Distribution Phase [A4] | 2.594268116258045, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.30579078982025976, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 30 kg CO2 eq., 30.34737347722995 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 8.91 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 9 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Motor Power Hp | 25 hp at 480 V AC 50-60 Hz for 3 phase motors, 60 hp at 480 V AC 50-60 Hz for 3 phase motors30 hp at 600 V AC 50-60 Hz for 3 phase motors, 100 hp at 600 V AC 50-60 Hz for 3 phase motors50 hp at 600 V DC |
| Short-circuit Current | 10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 21 kg CO2 eq., 20.7310951073816 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 53 kg CO2 eq., 52.820043208260074 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2530 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |

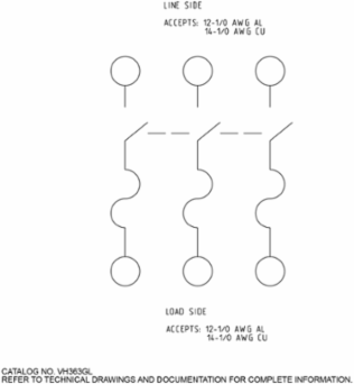

| Awg Gauge | 12 AWG...1/0 AWG aluminium14 AWG...1/0 AWG copper |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 107 kg CO2 eq. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 21.84 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 106.79857069894993 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
