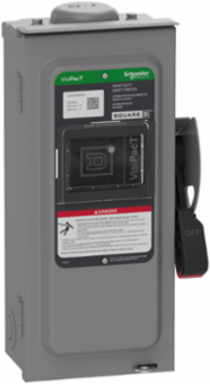

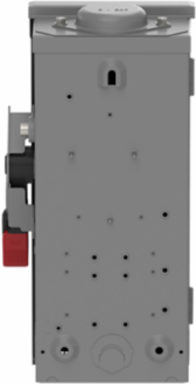

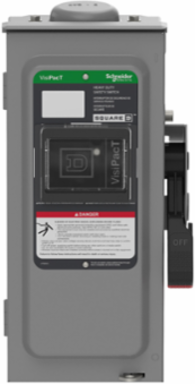

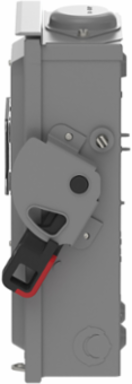

Square D VH361BRBGL Heavy Duty Safety Switch 3 Pole 30A 600V NEMA 3R
- MPN: VH361BRBGL
- PPN: SCH-VH361BRBGL
CAD
$921.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This heavy-duty safety switch from Schneider Electric is engineered to deliver dependable performance in demanding environments. Featuring a robust 3-pole configuration and a current rating of 30A, this safety switch is capable of managing voltages up to 600V, ensuring reliable operation in a variety of applications. Its NEMA 3R rating indicates suitability for outdoor use, offering protection against rain, sleet, and snow, while enhancing the safety and longevity of your electrical installations. With its durable design, this switch is an essential component for effective circuit control and protection in industrial settings.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 30 A
- Short-Circuit Current
- 200 kA for J fuse
- Motor Power
- 5 Hp at 480 V AC, 15 Hp at 480 V AC, 7.5 Hp at 600 V AC, 20 Hp at 600 V AC, 15 Hp at 600 V DC
- Duty Rating
- Heavy duty
- Disconnect Type
- Fusible disconnect
- Electrical Connection
- Lugs
- Wire Size
- AWG 12 to AWG 6 aluminum, AWG 14 to AWG 6 copper
- Mounting Type
- Surface
- Depth
- 5.106 in (129.69 mm)
- Height
- 14.843 in (377.01 mm)
- Grounding Kit
- Factory installation
- Certifications
- UL Listed
- China RoHS Regulation
- X
- Environmental Disclosure
- ENVPEP2303036EN
Voltage Rating600 V AC/DC
Fuse TypeJ
Number of Poles3
Device ApplicationHeavy application
Factory Installed NeutralNeutral (factory bonded)
Wiring Configuration4-wire (3PH + N)
Tightening Torque45 lbf.in (AWG 6), 40 lbf.in (AWG 8), 35 lbf.in (AWG 14 to AWG 10)
Enclosure RatingNEMA 3R galvannealed steel
Width6.62 in (168.15 mm)
Net Weight8.82 lb (4 kg)
Service EntranceSuitable for Canada
EU RoHS DirectiveCompliant
REACH RegulationFree of SVHC
Country of OriginUS
