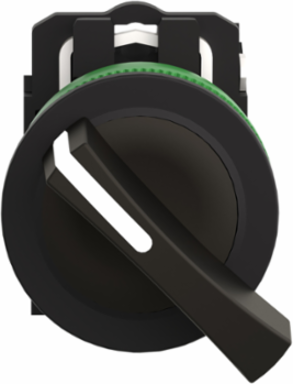

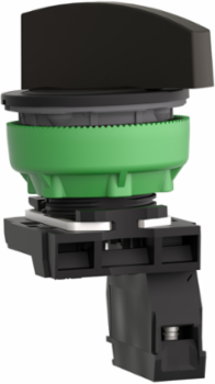

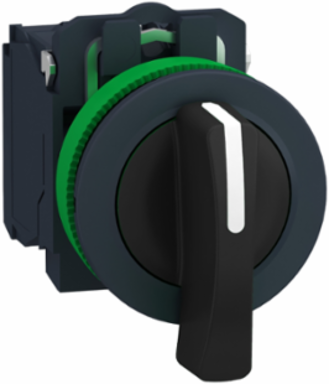

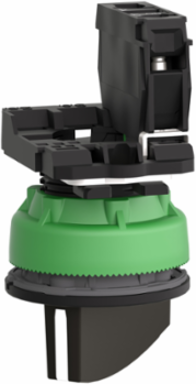

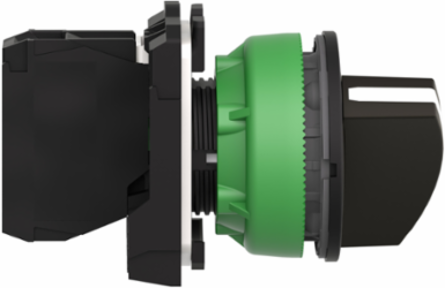

Schneider Electric XB5FJ21 Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO

Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, long handle, 2 positions, stay put, 1NO
  • MPN: XB5FJ21
  • PPN: SCH-XB5FJ21
  • UNSPSC: 39122217

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$57.62/ EA

Specifications

Conformance Attributes

Standards
IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1

Complementary Attributes

IE Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
UIMP Rated Impulse Withstand Voltage
6 kV IEC 60947-1
UI Rated Insulation Voltage600 V 3)IEC 60947-1

Important Information Attributes

Customizable
no, 1
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Carbon Footprint Of The Distribution Phase A4
0.0065248615, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5
0.0076923431, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6
0.1 kg CO2 eq., 0.07914
Local Data Status
Publishable
Legacy WEEE Scope
In
EOLI Availability Display
Yes
Product Repair Index Dam Doc
XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
ROHS EUR In Scope
No
ROHS EUR Full Compliance Status
Pro-active compliance (Product out of EU RoHS legal scope)
China ROHS In Scope
Yes
Without Single Use Plastic
Yes
Return Indicator
Y
Average Percentage Of Recycled Metal Content
16 %
Bezel Material
dark grey plastic
Contacts Usage
standard contacts
Electrical Shock Protection Class
class II conforming to IEC 60536
Head Type
built-in-flush
Operator Position Information
2 positions 90°
Package Weight Lbs
49.896 g
Product Availability
Stock - Normally stocked in distribution facility
Product Repair Index
A
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Head
round
Sustainable Packaging
Yes
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Type Of Operator
stay put
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Relationship Type
Compatible relationship
Pep Code
ENVPEP2308009_V1-EN
PCR Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional Unit Unit
Unit
Product Manager
SU-JIN NG
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
IE Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0677056546
Carbon Footprint Of The Manufacturing Phase A1 To A30.3 kg CO2 eq., 0.3395059158
Connections Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308008EN
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
WD Status2 - SELECTED (Migration)
Average Percentage Of Recycled Plastic Content27 %
Compatibility CodeXB5
Device Short NameXB5F
GCR BridgeXB5FJCUST01
Mounting Diameter30.5 mm
Operator Profileblack long handle, unmarked
Positive Openingwithout
Product Or Component Typeselector switch
Range Of ProductHarmony XB5
ReturnabilityYes
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1

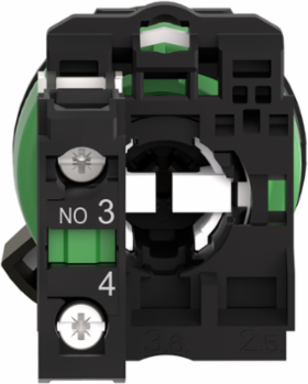

Terminals Description ISO N 1(13-14)NO
Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
ITH Conventional Free Air Thermal Current10 A IEC 60947-5-1
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Pep Verification Date2023-08-01
PSR VersionPSR-0005-ed2-2016 03 29
Functional Unit DescriptionThis switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.004 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Product Kit IdentifierN

Environment Attributes Main

EU ROHS Directive
Compliant?, Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of Protection
NEMA 13, NEMA 4X
Take Back
No
Recycled Metal Content At Cr Level
16 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
0.500568775
Environmental Disclosure
ENVPEP2308009_V1-EN
Packaging Without Single Use Plastic
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2023-08-01
PSR Version
PSR-0005-ed2-2016 03 29
IP Degree Of ProtectionIP66 IEC 60529, IP67, IP69, IP69K
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308008EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2308009_V1-EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
selector switch
Range Of ProductHarmony XB5

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Overview Attributes

Device Presentation
