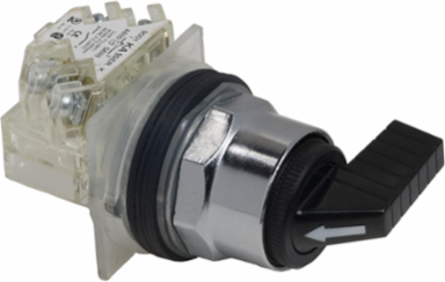

Harmony 9001K Selector Switch, 30mm, 3 Positions, Spring Return, Metal
Schneider Electric

Schneider Electric 9001KS53FBH1 Harmony 9001K Selector Switch, 30mm, 3 Positions, Spring Return, Metal

  • MPN: 9001KS53FBH1
  • UPC: 785901035268
  • PPN: SCH-9001KS53FBH1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
  • CAD

    $189.94

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This selector switch is operated by rotating the gloved hand knob." "It is a spring return operator selector switch with a rated voltage of 600V AC and a rated current of 10A." "It is furnished with screw clamp terminals for electrical connection." "It is a NEMA 1/2/3/3R/4/6/12/13 rated product." "This type K selector switch is fitted with chromium plated metal bezel and black standard knob." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

    Documentation & Downloads

    Specifications

    Key Specifications

    Range Of Product
    Harmony 9001K
    Type Of Operator
    spring return
    Device Short Name
    K
    Operator Profileblack gloved hand knob
    Product Or Component Typeselector switch

    Complementary

    Connections - Terminals
    screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    Bezel Material
    metal
    Operator Position Information
    3 positions
    Operator Profile
    long handle
    Return
    both sides to centre
    Size
    30 mm
    Contacts Type And Composition1 C/O
    Cam Profile3
    Mounting Diameter30 mm
    Type Of Operatorspring return
    Cap/Operator Or Lens Colourblack
    Device Presentationcomplete product

    Environment

    Product Certifications
    CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
    Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP121006EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Weee
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold
