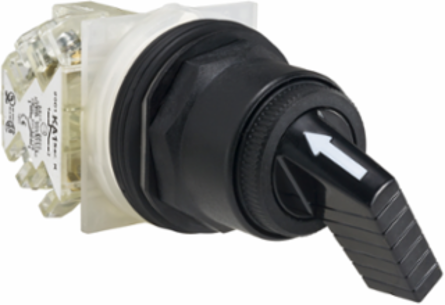

Square D 9001SKS11FBH13 Harmony Selector Switch, 30 mm, Black Long Handle, IP66, 2 Positions
- MPN: 9001SKS11FBH13
- UPC: 785901043591
- PPN: SCH-9001SKS11FBH13
CAD
$122.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001SK, black selector switch with long handle and E cam has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and uses screw-clamp terminals. This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Type Of Operator
- stay put
- Device Short Name
- 9001SK
Operator Profileblack long handle
Product Or Component Typeselector switch
Complementary
- Contacts Type And Composition
- 1 C/O
- Cam Profile
- 5
- Operator Position Information
- 2 positions
- Operator Profile
- long handle
- Cap/Operator Or Lens Colour
- black
- Device Presentation
- complete product
Bezel Materialplastic
Product Compatibility9001KA1 side 1 or 2
Mounting Diameter30 mm
Type Of Operatorstay put
Size30 mm
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP120820EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Product Certifications
- UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Protective TreatmentTC
