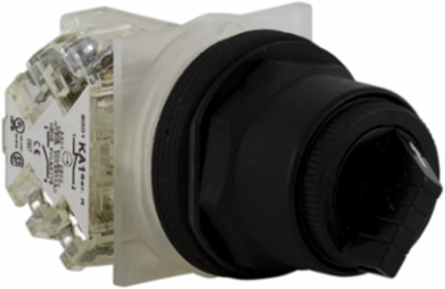

Schneider Electric 9001SKS11BH13 Harmony Selector Switch, 30mm, Black, 2 Positions, IP66
- MPN: 9001SKS11BH13
- UPC: 785901043393
- PPN: SCH-9001SKS11BH13
CAD
$123.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001SK, black selector switch with E cam has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Features
- The Schneider Electric Harmony 9001SKS11BH13 features a heavy-duty 30mm mounting diameter, matching industry-standard panel cutouts for seamless physical integration. This standardized sizing eliminates the need for custom fabrication or panel modifications, allowing industrial automation specialists to executing fast drop-in replacements during critical maintenance windows.
- Engineered with a double-insulated, high-grade plastic bezel and a corrosion-resistant body, this robust selector switch carries NEMA 3R, 4X, and 13 ratings alongside an IP66 degree of protection. This guarantees absolute dusttight, oiltight, and watertight performance, protecting your internal circuits from high-pressure water spray and harsh chemical washdowns without needing protective rubber boots.
- Utilizing a 2-position, left-to-right throw with an E-cam profile, this unit operates with a reliable "stay-put" (maintained) mechanism. This design firmly locks the standard black knob into your chosen position until it is manually toggled, providing operators with undeniable tactile feedback and clear visual confirmation of the machine s active operating mode.
- Featuring angled screw-clamp terminals and an automatic self-grounding operator design, this switch streamlines field wiring while ensuring finger-safe contact block security. Fully certified with UL Listing (File E42259), CSA certification, and CE marking, it immediately satisfies strict Canadian and international electrical safety codes for commercial and industrial control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operator Profile
- standard handle, black standard knob
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cam Profile
- 5
- Contacts Type And Composition
- 1 C/O
- Electrical Shock Protection Class
- class II conforming to IEC 61140
- Mounting Diameter
- 30 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Type Of Operator
- stay put
- Pep Code
- ENVPEP2503027EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
Local Publishable Date2026-03-25
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialplastic
Compatibility Code9001SK
Device Short Name9001SK
Mechanical Durability0.5 Mcycles
Operator Position Information2 positions
Product Or Component Typeselector switch
Range Of ProductHarmony 9001SK
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cap/Operator Or Lens Colourblack
Package Weight(Lbs)85.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP65/IP66
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- 9001KA1 side 1 or 2
- Pep Code
- ENVPEP2503027EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/4X/13
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- selector switch
Range Of ProductHarmony 9001SK
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
