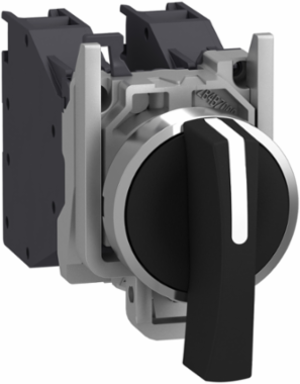

Schneider Electric XB4BJ33GEX Selector switch, Harmony XB4 - ATEX D, metal, 22mm, 3 positions, black long handle, stay put, screw clamp terminals, 2NO
- MPN: XB4BJ33GEX
- PPN: SCH-XB4BJ33GEX
CAD
$148.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete selector switch comes with a black long handle. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It has 3 operating positions and operates with a stay-put mechanism. It has 2 NO contact with slow-break operation. This metal key selector switch comes with chromium plated metal bezel. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France

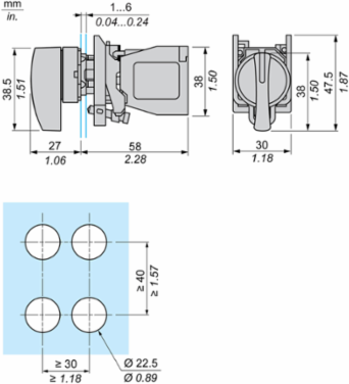

Depth85 mm
Physical Attributes
- Embedding Depth
- 58 mm
Complementary Attributes
- Ie Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-1, 3 A 240 V, AC, A600 IEC 60947-5-1, 6 A 120 V, AC, A600 IEC 60947-5-1, 0.27 A 250 V, DC, Q300 IEC 60947-5-1, 0.55 A 125 V, DC, Q300 IEC 60947-5-1, 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Ui Rated Insulation Voltage415 V
Important Information Attributes
- Fixing Center
- >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm
- Connections Terminals
- screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
- Carbon Footprint Of The Distribution Phase A4
- 0.0154307236, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0190821875, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0.1 kg CO2 eq., 0.123886
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308005EN
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 49 %
- Compatibility Code
- XB4
- Contacts Type And Composition
- 2 NO
- Device Short Name
- XB4
- Fixing Collar Material
- zamak
- Mechanical Durability
- 5000000 cycles
- Operator Position Information
- 3 positions +/- 45°
- Positive Opening
- without
- Product Or Component Type
- complete selector switch
- Protective Treatment
- TH
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ith Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Pep Code
- ENVPEP2308005_V1_EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Height Nominal
- 30 mm
- Certificate Agency
- INERIS 04ATEX9004U
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 2.6862
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 2.6862
MarkingII 2 GD, Ex tb IIIC Db, Ex db eb IIC Gb
Ie Rated Operational Current1.9 A 380 V, AC, A600 IEC 60947-5-1, 3 A 240 V, AC, A600 IEC 60947-5-1, 6 A 120 V, AC, A600 IEC 60947-5-1, 0.27 A 250 V, DC, Q300 IEC 60947-5-1, 0.55 A 125 V, DC, Q300 IEC 60947-5-1, 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.135522523
Carbon Footprint Of The Manufacturing Phase A1 To A30.8 kg CO2 eq., 0.7854617587
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Average Percentage Of Recycled Metal Content19 %
Bezel Materialchromium plated metal
Contact Operationslow-break
Contacts Usagestandard contacts
Dust Zonezone 21 - 22
Gas Zonezone 1 - 2
Mounting Diameter22 mm
Operator Profileblack long handle
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorstay put
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal46.2 mm
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2.6862
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3.1836
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-75 °C, -20-75 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 19 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.0793831928
- Environmental Disclosure
- ENVPEP2308005_V1_EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308005EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2308005_V1_EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001029
