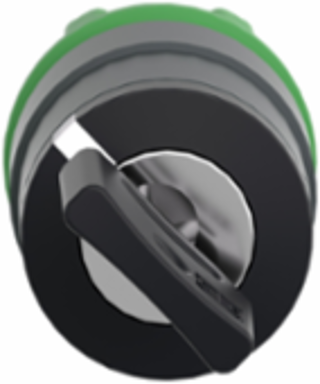

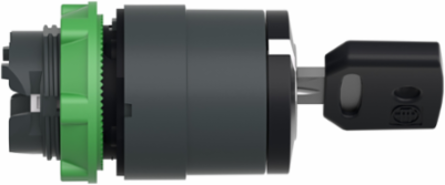

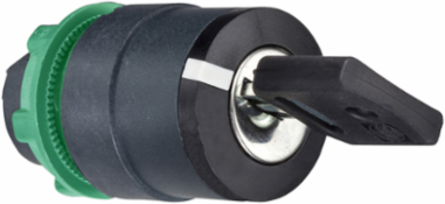

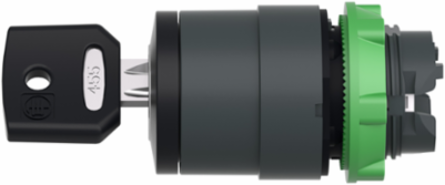

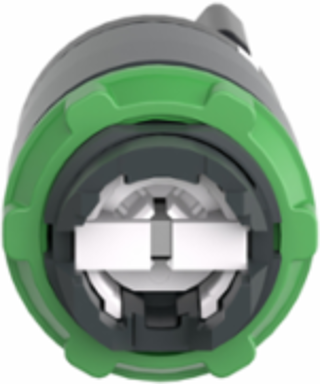

Schneider Electric ZB5AG210 Harmony XB5 Key Selector Switch Head, 22mm, Key 458A, IP66, 2 Positions
Schneider Electric ZB5AG210 Harmony XB5 Key Selector Switch Head, 22mm, Key 458A, IP66, 2 Positions
- MPN: ZB5AG210
- PPN: SCH-ZB5AG210
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$94.98/ EA
Description
This head with key (key no.458A) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- BV || UL listed || CSA || DNV || GL || LROS (Lloyds register of shipping)
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsIEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C15 1 single front mounting
- Cad Overall Height
- 29 mm
- Mechanical Durability
- 1000000 cycles
- Cad Overall Width
- 29 mm
Net Weight0.057 kg
Device Presentationbasic element
Station NameXALD 1...5 cut-outs || XALK 2...5 cut-outs
Cad Overall Depth72 mm
Specifications
- Range Of Product
- Harmony XALF || Harmony XB5
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- round
- Key Withdrawal Position
- left
- Bezel Material
- dark grey plastic
- Operator Position Information
- 2 positions 90°
- Type Of Keylock
- key 458A
Mounting Diameter22 mm
Product Or Component Typehead for key selector switch
Head Typestandard
Sale Per Indivisible Quantity1
Operator Profileblack key switch
Device Short NameZB5
