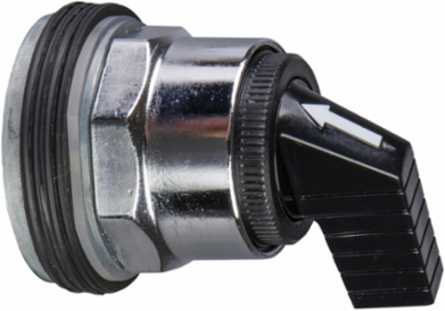

Schneider Electric 9001KS63FB Harmony Selector Switch Head, 30mm, 3 Positions, Metal, Long Handle, Black
- MPN: 9001KS63FB
- UPC: 785901035435
- PPN: SCH-9001KS63FB
CAD
$104.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for versatility in automation and control applications, this selector switch head from Schneider Electric is a reliable choice for any control panel. Featuring a robust metal construction, it boasts a long handle and supports three distinct positions, allowing for seamless operation in complex systems. The sleek black finish not only enhances durability but also provides a professional aesthetic that fits well in a variety of environments. This Harmony selector switch head is an essential component for those seeking dependable control solutions in their automation projects.
Documentation & Downloads
Specifications
Additional
- Size
- 30 mm
- Operator Positions
- 3 positions
- Operator Profile
- black long handle
- Vibration Resistance
- 7 gn (2-500 Hz) IEC 60068-2-6
- Ambient Air Temperature For Operation
- -25 to 70 °C
- Overvoltage Category
- Class II IEC 61140
- NEMA Degree of Protection
- NEMA 1, 2, 3, 3R, 4, 12, 13
- Protective Treatment
- TC
- Product Or Component Type
- head for selector switch
- Range Of Product
- Harmony 9001K
- Net Weight
- 0.172 kg
- Cam Profile
- 3
Mechanical Durability500000 cycles
Type of Operatorleft to centre spring return
Mounting Diameter30 mm
Shock Resistance50 gn IEC 60068-2-27
Ambient Air Temperature For Storage-40 to 70 °C
IP Degree of ProtectionIP66 IEC 60529
Bezel Materialmetal
StandardsEN/IEC 60947-1, UL 508, EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C 852, JIS C 4520
Contacts Type And Compositionwithout contact block
Product CertificationsUL 508, NEMA
Shape Of Signaling Unit Headoctagonal
Country of OriginMX
