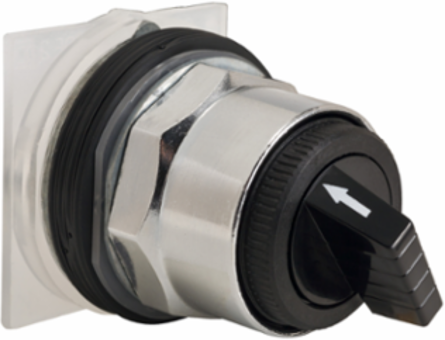

Schneider Electric 9001KS12B Harmony 9001K Selector Switch Head 30mm, 2 Positions, Metal, Black
- MPN: 9001KS12B
- UPC: 785901055662
- PPN: SCH-9001KS12B
CAD
$68.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This black head for selector switch is a separate component of the range of control and signaling units, Harmony 9001K diameter 30mm. It has a chromium-plated metal bezel. It is supplied with a black handle. It features 2 maintained positions. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features
- Part of the high-end Harmony™ 9001K lineup, this non-illuminated selector switch operator features a standard 30 mm (1.18-inch) diameter mounting chassis. This traditional rugged sizing provides panel builders and factory maintenance technicians with a standardized, robust footprint that easily drops into heavy machinery consoles and motor control centers (MCC) without needing specialized enclosure alterations or drilling.
- This selector head is engineered with a specialized internal Cam D profile, specifically optimized to mechanically direct the plunge sequence of rear-mounted control circuits. It allows industrial electricians to configure highly targeted electrical interlocking logic by deciding which contact paths close or break when the handle transitions between its two primary left-right positions.
- Boasting comprehensive NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 structural ratings, this operator forms a complete oil-tight, dust-tight, and waterproof seal. It keeps your control enclosure pristine by blocking flying metal shards, abrasive airborne particulates, coolant mist, and direct high-pressure hose spray without needing separate external rubber boots.
- To save valuable installation labor and speed up panel wiring, this device includes an automatic mechanical self-grounding frame. The structural retention mechanism automatically establishes a secure electrical bond with the metal panel deadfront upon tightening, eliminating the need to route separate, tedious grounding jumper wires while maintaining compliance with strict Canadian safety codes.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- head for selector switch
Enclosure Typedust and oil resistant weatherproof enclosure indoor/outdoor
Complementary
- Contacts Type And Composition
- without contact block
- Operator Position Information
- 2 positions
- Type Of Operator
- stay put
- Type Of Operator
- maintained
- Operator Profile
- 1 projecting push-button
Bezel Materialmetal
Operator Profilestandard handle
Cap/Operator Or Lens Colourblack
Size30 mm
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
