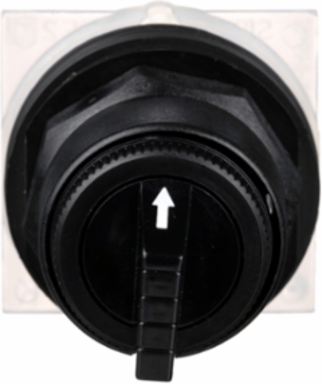

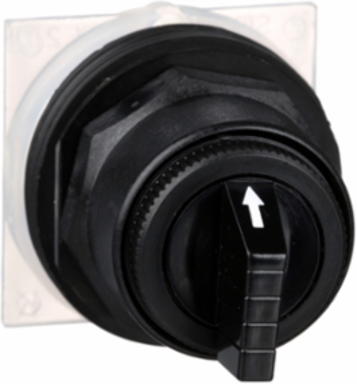

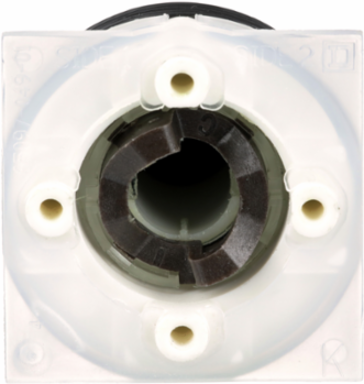

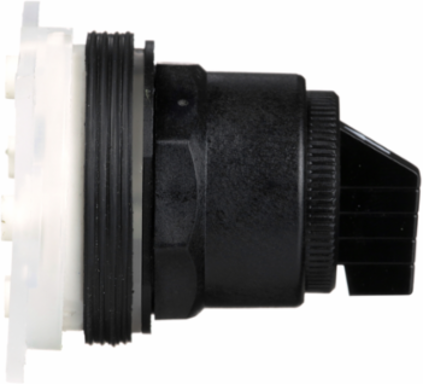

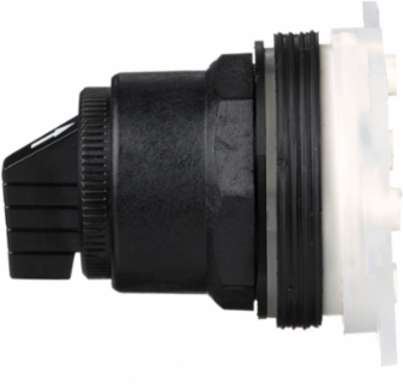

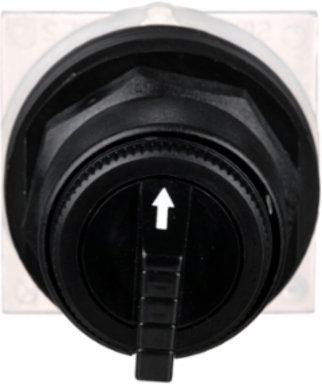

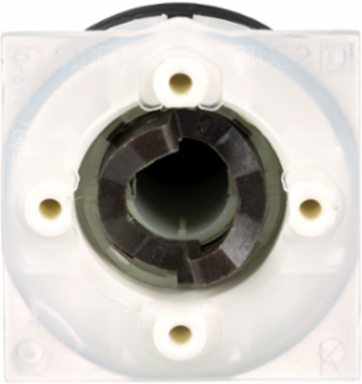

Schneider Electric 9001SKS43B Harmony 9001SK Selector Switch Head, 30mm, 3 Positions, IP66
- MPN: 9001SKS43B
- UPC: 785901524373
- PPN: SCH-9001SKS43B
CAD
$68.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony 9001SK Selector Switch Head, 30mm, 3 Positions, IP66
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- plastic
- Compatibility Code
- 9001SK
- Device Short Name
- 9001SK
- Mechanical Durability
- 0.5 Mcycles
- Operator Position Information
- 3 positions
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Type Of Operator
- stay put
- Pep Code
- ENVPEP2503027EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Cam Profile3
Contacts Type And Compositionwithout contact block
Electrical Shock Protection Classclass II conforming to IEC 61140
Mounting Diameter30 mm
Operator Profilestandard handle
Product Or Component Typehead for selector switch
Range Of ProductHarmony 9001SK
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cap/Operator Or Lens Colourblack
Package Weight(Lbs)54.431 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP65/IP66
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/4X/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- head for selector switch
Range Of ProductHarmony 9001SK
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
