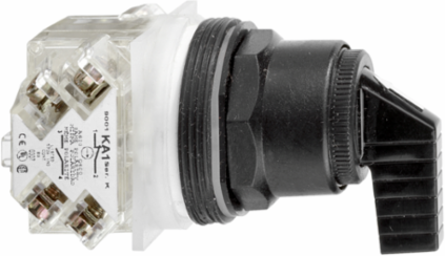

Schneider Electric 9001SKS43FB Harmony Selector Switch Head, 30mm, Black Long Handle, 3 Positions
- MPN: 9001SKS43FB
- UPC: 785901849940
- PPN: SCH-9001SKS43FB
CAD
$67.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Harmony Selector Switch Head by Schneider Electric is expertly crafted for intuitive automation and control in various applications. Featuring a sleek black long handle and designed for a 30mm configuration, this switch offers three distinct positions, allowing for versatile functionality in your control systems. Its robust design ensures reliable operation, making it an essential component for enhancing the efficiency and safety of industrial environments. Whether used in complex machinery or simple control panels, this selector switch head is tailored to meet the demands of modern automation challenges.
Documentation & Downloads
Specifications
Additional
- Positions
- 3 positions
- Ambient Air Temperature for Operation
- -25 to 70 °C
- Vibration Resistance
- 7 gn (2 to 500 Hz) IEC 60068-2-6
- Size
- 30 mm
- Bezel Material
- Plastic
- Operator Profile
- Black long handle
- Net Weight
- 0.059 kg
- NEMA Degree of Protection
- NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, 13
- Protective Treatment
- TC
- Standards
- JIS C 852, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C 4520, CSA C22.2 No 14, UL 508
- Contacts Type and Composition
- without contact block
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- China RoHS Regulation
- X
- WEEE
- Must be disposed per EU waste collection
- Sustainable Offer Status
- Green Premium product
- Product Or Component Type
- Head for selector switch
- Device Short Name
- 9001SK
- Panel Thickness
- 1 to 6 mm (0.04 to 0.24 in)
- Warranty
- 18 months
Operator TypeStay put
Shock Resistance50 gn IEC 60068-2-27
Mechanical Durability500000 cycles
Mounting Diameter30 mm
Shape of Signaling Unit HeadOctagonal
Cam Profile3
IP Degree of ProtectionIP66 IEC 60529
Electrical Shock Protection ClassClass II IEC 61140
Ambient Air Temperature for Storage-40 to 70 °C
Product CertificationsUL 508, NEMA
Mercury FreeYes
RoHS Exemption InformationYes
REACH Free of SVHCYes
Toxic Heavy Metal FreeYes
Range of ProductHarmony 9001SK
Product Compatibility9001KA1 side 1 or 2
Device PresentationBasic element
Circularity ProfileN/A
