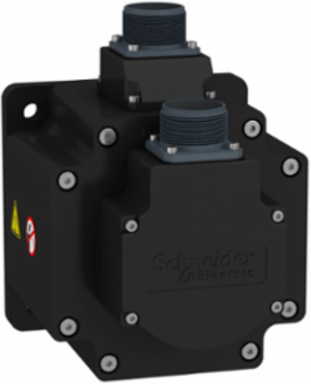

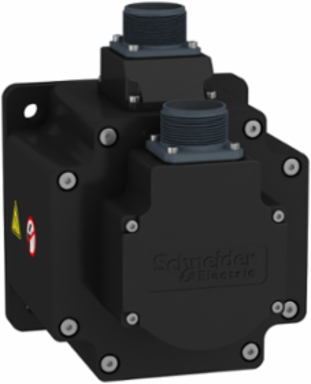

Schneider Electric BCH2MM2023CF6C Lexium 28 Servo Motor 130mm 2000W Keyed Shaft 3000RPM
- MPN: BCH2MM2023CF6C
- PPN: SCH-BCH2MM2023CF6C
CAD
$2661.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end with holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 9.95A and a continuous power of 2000W. The shaft dimensions are 22mm (diameter) x 55mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 216mm and the centering collar dimensions are 8mm (depth) x 110mm (diameter) with 145mm mounting hole. It weighs 11kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 2kW 220V three phase. It supports 130mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Switzerland, China, France, Mexico, Sweden |
|---|
Physical Attributes
| Key Width | 8 mm |
|---|---|
| Shaft Length | 55 mm |
| Motor Flange Size | 130 mm |
|---|
Complementary Attributes
| Maximum Current Irms | 32.85 A 2 kW, 220 V32.85 A LXM28 2 kW, 220 V, 33.0 A |
|---|---|
| Maximum Ambient Air Temperature For Operation | 40.0 °C |
| Maximum Mechanical Speed | 3000 rpm |
| Maximum Permanent Current | 11.25 A |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Line Rated Current | 11.25 A |
|---|---|
| Maximum Axial Force Fa | 200 N |
| Maximum Operational Altitude | 1000.0 m |
| Maximum Radial Force Fr | 670 N 2000 rpm |
| Minimum Operational Altitude | 0.0 m |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Coefficient 1 1 | -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm |
| Coefficient 1 5 | -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5 |
| Nominal Speed | LXM26D 12 A, 220 V, three phase, LXM28 12 A, 220 V, three phase, 2000 rpm |
| Peak Stall Torque | 28.65 N.m28.65 N.m LXM26D 12 A, 220 V, three phase, 28.65 N.m LXM28 12 A, 220 V, three phase |
| Carbon Footprint Of The Distribution Phase [A4] | 1.5906160538, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1 kg CO2 eq., 0.0785730332 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 7 804 kg CO2 eq., 7804.3316404536 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 145 mm |
| Coefficient 1 4 | 7.11E-26 N.m/rpm4 |
| Coefficient 2 0 | 0 N.m |
| Continuous Power | 2000 W |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Electrical Connection | connector MIL |
| Holding Brake | with |
| Inertia | 14.09 kg.cm² of brake14.1 kg.cm² of motor |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Motor Figures | 230.0 V |
| Mounting Holes Diameter | 9.2 mm |
| Network Number Of Phases | 3 |
| Number Of Motor Stacks | 4 |
| Peak Nominal Torque | 28.65 N.m |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium 28 |
| Rotor Inertia | 14.1 kg.cm² |
| Shaft End | keyed |
| Software Version | EIME v5.6.0.1 |
| Stator Inductance | 4.3 mH 20 °C |
| Sustainable Packaging | No |
| Temperature Magnet Hot | 100 °C |
| Torque Constant | 0.96 N.m/A 20 °C |
| Type Of Cooling | natural convection |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Length Total | 216 mm |
| Accuracy Error [Angular] | 0.044 ° |
| Distance Shaft Shoulder-flange | 8 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501524000 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Coefficient 1 3 | -2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3 |
| Continuous Stall Torque | 9.55 N.m9.55 N.m LXM26D 12 A, 220 V, three phase, 9.55 N.m LXM28 12 A, 220 V, three phase |
| Nominal Torque | 9.55 N.m, 9.55 N.m half speed, 9.55 N.m full speed, 9.55 N.m LXM26D 12 A, 220 V, three phase, 9.55 N.m LXM28 12 A, 220 V, three phase |
| Saturation Coefficient | -3.8243890773E-18, -3.8243890773E-18 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1.3240576054, 1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 71 kg CO2 eq., 70.6565775785 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1504002EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2444 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 110 mm |
| Coefficient 1 2 | 5.62440546E-19 N.m/rpm² |
| Coefficient 1 6 | 3.2E-34 N.m/rpm6 |
| Coefficient 2 1 | 8.75000000000026E-06 N.m/rpm |
| Continuous Stall Current | 9.95 A |
| Derating Temperature Scale | 40.0 °C |
| Device Short Name | BCH2 |
| Feedback Type | 20 bits single turn absolute encoder |
| Holding Torque | 9.6 N.m built-in |
| Maximum Operational Altitude | 1000.0 m |
| Minimum Operational Altitude | 0.0 m |
| Motor Voltage Drop Coefficient | 1 |
| Mounting Support | asian standard flange |
| Number Of Motor Poles | 5.0 |
| Number Of Mounting Holes | 4 |
| Phase | three phase |
| Product Or Component Type | servo motor |
| Returnability | No |
| Shaft Diameter | 22 mm |
| Sizing Reference | BCH2 |
| Stator Electrical Time Constant | 13.24 ms 20 °C |
| Stator Resistance | 0.34 Ohm 20 °C |
| Temperature Copper Hot | 135 °C |
| Temperature Magnet Rt | 20 °C |
| Total Lifecycle Carbon Footprint | 7 878 kg CO2 eq. |
| Pep Code | ENVPEP1504002EN |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 15928.938 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| [Us] Rated Supply Voltage | 220 V |
| Brake Pull-in Power | 19.7 W |
| Maximum [In] Rated Current | 11.25 A |
| Package Weight(Lbs) | 12 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Product Compatibility | LXM26D servo drive 2 kW, 220 V, three phase, LXM28 servo drive 2 kW, 220 V, three phase |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-40 °C |
| Environmental Disclosure | ENVPEP1504002EN |
| Ip Degree Of Protection | IP50 IM V3IP65 IM B5, IM V1 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 7877.9814647244 |
| Circularity Profile | ENVEOLI1504002EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1504002EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | three phase |
|---|---|
| Range Of Product | Lexium 28 |
| Product Or Component Type | servo motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 2000 W2000 W LXM26D 12 A, 220 V, three phase, 2000 W LXM28 12 A, 220 V, three phase |
|---|
| Output Current 3s Peak | 33.0 A |
|---|
