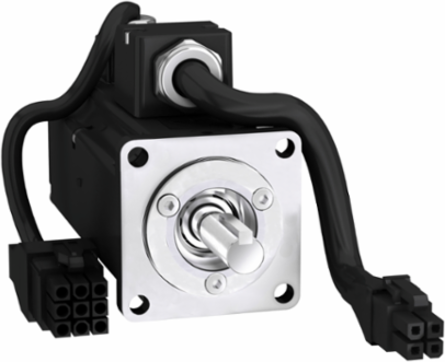

Schneider Electric BCH2MBA533CF5C servo motor BCH, Lexium 28, 40mm, 50W, 0.055kg.cm², with oil seal, with key, brake, leads connection
Schneider Electric BCH2MBA533CF5C servo motor BCH, Lexium 28, 40mm, 50W, 0.055kg.cm², with oil seal, with key, brake, leads connection
- MPN: BCH2MBA533CF5C
- PPN: SCH-BCH2MBA533CF5C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1036.55/ EA
Description
servo motor BCH, Lexium 28, 40mm, 50W, 0.055kg.cm², with oil seal, with key, brake, leads connection
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 46 mm
- Continuous Power
- 50 W
- Product Compatibility
- LXM26D servo drive 0.05 kW, 220 V, single phase || LXM26D servo drive 0.05 kW, 220 V, three phase || LXM28... servo drive 0.05 kW, 220 V, single phase || LXM28... servo drive 0.05 kW, 220 V, three phase || LXM28... servo drive 0.05 kW, 110 V, single phase
- Holding Torque
- 0.32 N.m built-in
- Electrical Connection
- free lead
- Number Of Motor Stacks
- 1
- Back Emf Constant
- 18 V/krpm 20 °C
- Centring Collar Depth
- 3 mm
- Shaft Length
- 25 mm
- Network Number Of Phases
- single phase || three phase
- Length
- 112 mm
- Centring Collar Diameter
- 30 mm
- Motor Flange Size
- 40 mm
- Nominal Output Power
- 50 W LXM26D 0.64 A, 220 V, single phase || 50 W LXM26D 0.64 A, 220 V, three phase || 50 W LXM28... 0.64 A, 220 V, single phase || 50 W LXM28... 0.64 A, 220 V, three phase || 50 W LXM28... 1.2 A, 110 V, single phase
- Number Of Mounting Holes
- 4
- Shaft Diameter
- 8 mm
- Mounting Holes Diameter
- 4.5 mm
- Shaft End
- keyed
- Feedback Type
- 20 bits single turn absolute encoder
- Continuous Stall Current
- 0.54 A
- Torque Constant
- 0.3 N.m/A 20 °C
Maximum Permanent Current0.59 A
Maximum Mechanical Speed5000 rpm
Stator Electrical Time Constant0.8 ms 20 °C
Maximum Radial Force Fr85 N 3000 rpm
Mounting Supportasian standard flange
Rotor Inertia0.055 kg.cm²
Maximum Axial Force Fa40 N
Holding Brakewith
Brake Pull-In Power4.35 W
Maximum Current Irms1.77 A LXM28... 0.05 kW, 220 V || 1.77 A LXM28... 0.05 kW, 110 V
Net Weight0.6 kg
Stator Inductance24.7 mH 20 °C
[Us] Rated Supply Voltage220 V || 110 V
Peak Stall Torque0.48 N.m LXM26D 0.64 A, 220 V, single phase || 0.48 N.m LXM26D 0.64 A, 220 V, three phase || 0.48 N.m LXM28... 0.64 A, 220 V, single phase || 0.48 N.m LXM28... 0.64 A, 220 V, three phase || 0.48 N.m LXM28... 1.2 A, 110 V, single phase
Distance Shaft Shoulder-Flange3 mm
Key Width3 mm
Type Of Coolingnatural convection
Nominal Speed3000 rpm LXM26D 0.64 A, 220 V, single phase || 3000 rpm LXM26D 0.64 A, 220 V, three phase || 3000 rpm LXM28... 0.64 A, 220 V, single phase || 3000 rpm LXM28... 0.64 A, 220 V, three phase || 3000 rpm LXM28... 1.2 A, 110 V, single phase
Stator Resistance31 Ohm 20 °C
Nominal Torque0.16 N.m LXM26D 0.64 A, 220 V, single phase || 0.16 N.m LXM26D 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 0.64 A, 220 V, single phase || 0.16 N.m LXM28... 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 1.2 A, 110 V, single phase
Continuous Stall Torque0.16 N.m LXM26D 0.64 A, 220 V, single phase || 0.16 N.m LXM26D 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 0.64 A, 220 V, single phase || 0.16 N.m LXM28... 0.64 A, 220 V, three phase || 0.16 N.m LXM28... 1.2 A, 110 V, single phase
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504002EN
Environment
- Ambient Air Temperature For Operation
- 0-40 °C
Ip Degree Of ProtectionIP50 IM V3 || IP65 IM B5, IM V1
Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
