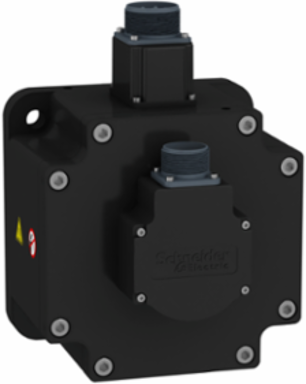

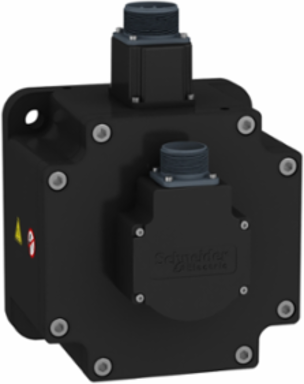

Schneider Electric BCH2MR3013CF6C Lexium 28 Servo Motor 180mm, 3000W, 54.1 kg.cm2, Keyed, Brake

  • MPN: BCH2MR3013CF6C
  • PPN: SCH-BCH2MR3013CF6C
  • UNSPSC: 26101205

CAD

$4111.97

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Lexium 28 Servo Motor, developed by Schneider Electric, is engineered to offer superior performance in automation and motion control applications. With a robust power output of 3000W and a torque rating of 54.1 kg.cm2, this motor is designed to deliver precise and reliable operation, making it ideal for demanding industrial environments. Its keyed design and integrated brake enhance stability and control, ensuring optimal functionality across various applications. Whether you're upgrading existing systems or developing new machinery, this servo motor stands out as a dependable choice for achieving high-efficiency motion control.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginChina
Weight24630 g

Physical Attributes

Key Width10 mm
Shaft Length79 mm
Motor Flange Size180 mm

Complementary Attributes

Maximum Current Irms58.4 A LXM26D 3 kW, 220 V, 58.4 A LXM28... 3 kW, 220 V, 61.0 A
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed3000 rpm
Maximum Permanent Current18.8 A
Minimum Ambient Air Temperature For Operation0.0 °C
Us Rated Supply Voltage220 V
Line Rated Current18.8 A
Maximum Axial Force Fa497 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr1200 N 1500 rpm
Minimum Operational Altitude0.0 m
Maximum In Rated Current18.8 A

Important Information Attributes

Persona Type IdsEU, OM, OM8
Coefficient 1 1-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal SpeedLXM26D 19.8 A, 220 V, three phase, LXM28... 19.8 A, 220 V, three phase, 1500 rpm
Peak Stall Torque57.29 N.m LXM26D 19.8 A, 220 V, three phase, 57.29 N.m LXM28... 19.8 A, 220 V, three phase
Carbon Footprint Of The Distribution Phase A43.1778774664, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1569803543, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B611 069 kg CO2 eq., 11069.210475089
Local Publishable Date2026-01-12
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes200 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power3000 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionconnector MIL
Holding Brakewith
Inertia54.09 kg.cm² of brake54.1 kg.cm² of motor
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter35 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant20.94 ms 20 °C
Stator Resistance0.234 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint11 216 kg CO2 eq.
Database Version2016-11
Length Total235 mm
Customs Code8501524000
Distance Shaft Shoulder Flange4 mm
Functional Unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional Unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh22592.68
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque19.1 N.m LXM26D 19.8 A, 220 V, three phase, 19.1 N.m LXM28 19.8 A, 220 V, three phase
Nominal Torque19.1 N.m half speed, 19.1 N.m full speed, 19.1 N.m LXM26D 19.8 A, 220 V, three phase, 19.1 N.m LXM28... 19.8 A, 220 V, three phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End Of Life Phase C1 To C43 kg CO2 eq., 2.6453227466
Carbon Footprint Of The Manufacturing Phase A1 To A3141 kg CO2 eq., 141.1641390135
Local Data StatusPublishable
Return IndicatorN
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter114.3 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current16.49 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Holding Torque48 N.m built-in
Motor Figures230.0 V
Mounting Holes Diameter13.5 mm
Network Number Of Phases3
Number Of Motor Stacks2
Peak Nominal Torque57.29 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia54.1 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance3.45 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant1.16 N.m/A 20 °C
Type Of Coolingnatural convection
Data Sourceextrapolated product
Nbr. Of Units In Pkg.1
Brake Pull In Power49.6 W
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10

Environment Attributes Main

Product CompatibilityLXM26D servo drive 3 kW, 220 V, three phase, LXM28... servo drive 3 kW, 220 V, three phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation0-40 °C
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint11216.3547946697
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasethree phase
Range Of ProductLexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 10EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power3000 W LXM26D 19.8 A, 220 V, three phase, 3000 W LXM28... 19.8 A, 220 V, three phase
Output Current 3s Peak61.0 A
Lexium 28 Servo Motor 180mm, 3000W, 54.1 kg.cm2, Keyed, Brake
Lexium 28 Servo Motor 180mm, 3000W, 54.1 kg.cm2, Keyed, Brake
