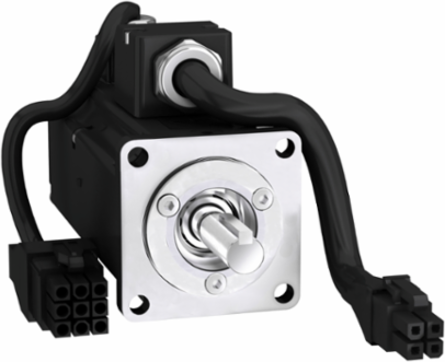

Schneider Electric BCH2MBA533CA5C Servo Motor, 40 mm Flange, 50W, 0.054 kg.cm2, Keyed
- MPN: BCH2MBA533CA5C
- PPN: SCH-BCH2MBA533CA5C
CAD
$693.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric presents a compact yet powerful servo motor designed for precision motion control in various automation applications. With a 40 mm flange and a robust 50W output, this model stands out for its efficient performance and reliability. The motor s keyed design enhances its integration into systems, ensuring consistent operational behavior across a range of tasks. Perfectly suited for applications requiring meticulous control, this servo motor is an essential component for optimizing automation processes in industrial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, France, Sweden
Physical Attributes
- Key Width
- 3 mm
- Shaft Length
- 25 mm
Motor Flange Size40 mm
Complementary Attributes
- Maximum Current Irms
- 1.77 A LXM28... 0.05 kW, 220 V, 1.77 A LXM28... 0.05 kW, 110 V, 1.8 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Permanent Current
- 0.59 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current0.59 A
Maximum Axial Force Fa40 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr85 N 3000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Nominal Speed
- LXM28... 0.64 A, 220 V, three phase, LXM26D 0.64 A, 220 V, single phase, LXM26D 0.64 A, 220 V, three phase, LXM28... 0.64 A, 220 V, single phase LXM28... 1.2 A, 110 V, single phase, 3000 rpm
- Peak Stall Torque
- 0.48 N.m LXM28... 0.64 A, 220 V, three phase, 0.48 N.m LXM26D 0.64 A, 220 V, single phase, 0.48 N.m LXM26D 0.64 A, 220 V, three phase, 0.48 N.m LXM28... 0.64 A, 220 V, single phase0.48 N.m LXM28... 1.2 A, 110 V, single phase
- Saturation Coefficient
- -3.8243890773E-18, -3.8243890773E-18
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0829628587, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0040981879, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 564 kg CO2 eq., 564.4063754331
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 46 mm
- Coefficient 1 4
- 7.11E-26 N.m/rpm4
- Coefficient 2 0
- 0 N.m
- Continuous Power
- 50 W
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Electrical Connection
- free lead
- Holding Brake
- without
- Maximum Operational Altitude
- 1000.0 m
- Minimum Operational Altitude
- 0.0 m
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- asian standard flange
- Number Of Motor Poles
- 4.0
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium 28
- Rotor Inertia
- 0.054 kg.cm²
- Shaft End
- keyed
- Software Version
- EIME v5.6.0.1
- Stator Inductance
- 24.7 mH 20 °C
- Sustainable Packaging
- No
- Temperature Magnet Hot
- 100 °C
- Torque Constant
- 0.3 N.m/A 20 °C
- Type Of Cooling
- natural convection
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Length Total
- 82 mm
- Brake Pull-in Power
- 4.35 W
- Maximum [In] Rated Current
- 0.59 A
- Package Weight(Lbs)
- 713.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque0.16 N.m LXM28 0.64 A, 220 V, three phase, 0.16 N.m LXM26D 0.64 A, 220 V, single phase, 0.16 N.m LXM26D 0.64 A, 220 V, three phase, 0.16 N.m LXM28 0.64 A, 220 V, single phase0.16 N.m LXM28 1.2 A, 110 V, single phase
Nominal Torque0.16 N.m LXM28... 0.64 A, 220 V, three phase0.16 N.m half speed, 0.16 N.m full speed, 0.16 N.m LXM26D 0.64 A, 220 V, single phase, 0.16 N.m LXM26D 0.64 A, 220 V, three phase, 0.16 N.m LXM28... 0.64 A, 220 V, single phase0.16 N.m LXM28... 1.2 A, 110 V, single phase
Phasethree phase, single phase
[Us] Rated Supply Voltage220 V, 110 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0690597859
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 3.6852838565
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter30 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current0.54 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Inertia0.0 kg.cm² of brake0.044 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter4.5 mm
Network Number Of Phases1
Number Of Motor Stacks1
Peak Nominal Torque0.48 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter8 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant0.8 ms 20 °C
Stator Resistance31 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint568 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh1151.9749
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange3 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C, -20-40 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 568.2477801221
- Environmental Disclosure
- ENVPEP1504002EN
- Ip Degree Of Protection
- IP50 IM V3IP65 IM B5, IM V1
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityLXM28... servo drive 0.05 kW, 220 V, three phase, LXM26D servo drive 0.05 kW, 220 V, single phase, LXM26D servo drive 0.05 kW, 220 V, three phase, LXM28... servo drive 0.05 kW, 220 V, single phase, LXM28... servo drive 0.05 kW, 110 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase, single phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 50 W LXM28... 0.64 A, 220 V, three phase, 50 W LXM26D 0.64 A, 220 V, single phase, 50 W LXM26D 0.64 A, 220 V, three phase, 50 W LXM28... 0.64 A, 220 V, single phase50 W LXM28... 1.2 A, 110 V, single phase
Output Current 3s Peak1.8 A
