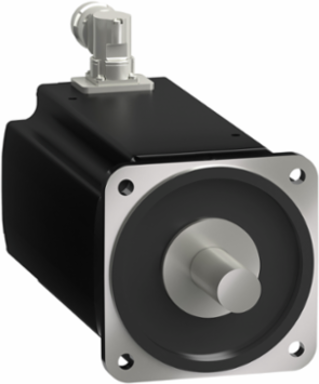

Schneider Electric BMH1904P21A2A servo motor BMH, Lexium 32, 100Nm, 3000rpm, untapped shaft, without brake, IP65, IP67, 128bit encoder
Schneider Electric BMH1904P21A2A servo motor BMH, Lexium 32, 100Nm, 3000rpm, untapped shaft, without brake, IP65, IP67, 128bit encoder
- MPN: BMH1904P21A2A
- PPN: SCH-BMH1904P21A2A
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
servo motor BMH, Lexium 32, 100Nm, 3000rpm, untapped shaft, without brake, IP65, IP67, 128bit encoder
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 215 mm
- Stator Electrical Time Constant
- 29.6 ms 20 °C
- Number Of Motor Stacks
- 4
- Number Of Motor Poles
- 10
- Maximum Axial Force Fa
- 0.2 x Fr
- Second Shaft
- without second shaft end
- Network Number Of Phases
- three phase
- Maximum Current Irms
- 100 A LXM32MC10N4 || 100 A
- Centring Collar Diameter
- 180 mm
- Motor Flange Size
- 190 mm
- Number Of Mounting Holes
- 4
- Key Width
- 10 mm
- Type Of Cooling
- natural convection
- Stator Resistance
- 0.16 Ohm 20 °C
- Continuous Stall Current
- 40 A
Maximum Permanent Current100 A
Maximum Radial Force Fr3800 N 1000 rpm || 3700 N 2000 rpm || 3600 N 3000 rpm
Rotor Inertia276.7 kg.cm²
Back Emf Constant168 V/krpm 120 °C
Centring Collar Depth4 mm
Shaft Length80 mm
Length383 mm
Net Weight55.8 kg
Stator Inductance4.74 mH 20 °C
[Us] Rated Supply Voltage480 V
Shaft Diameter38 mm
Mounting Holes Diameter14 mm
Feedback Typesingle turn SinCos Hiperface
Range CompatibilityLexium 32
Torque Constant2.5 N.m/A 120 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Maximum Mechanical Speed
- 3000 rpm
- Holding Brake
- without
- Product Or Component Type
- servo motor
- Peak Stall Torque
- 230 N.m LXM32MC10N4 40 A, 400 V, three phase || 230 N.m LXM32MC10N4 40 A, 480 V, three phase
- Shaft End
- smooth shaft
- Electrical Connection
- rotatable right-angled connectors
- Device Short Name
- BMH
Mounting Supportinternational standard flange
Speed Feedback Resolution131072 points/turn
Nominal Output Power9800 W LXM32MC10N4 40 A, 400 V, three phase || 9800 W LXM32MC10N4 40 A, 480 V, three phase
Ip Degree Of ProtectionIP65 standard || IP67 with IP67 kit
Nominal Speed2000 rpm LXM32MC10N4 40 A, 400 V, three phase || 2000 rpm LXM32MC10N4 40 A, 480 V, three phase
Nominal Torque46.8 N.m LXM32MC10N4 40 A, 400 V, three phase || 46.8 N.m LXM32MC10N4 40 A, 480 V, three phase
Continuous Stall Torque100 N.m LXM32MC10N4 40 A, 400 V, three phase || 100 N.m LXM32MC10N4 40 A, 480 V, three phase
