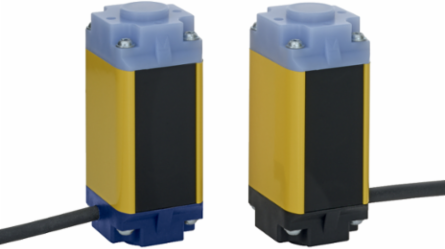

Schmersal 103013530 Safety Light Barrier SLB240-ER-2-LST, 15 m Range, IP67, 180 g Weight
- MPN: 103013530
- PPN: SCM-103013530
CAD
$1025.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Light Barrier SLB240-ER-2-LST, 15 m Range, IP67, 180 g Weight
Features
- Compact design With integral evaluation
- Range 15 m
- Safe OSSD outputs to PLc
- Automatic start or restart interlock
- Sturdy metal enclosure with M12 connector or cable
- Set-up tool and diagnostic indication
Documentation & Downloads
Specifications
Key Specifications
| Length | 33 mm |
|---|---|
| Height | 72 mm |
| Width | 27.8 mm |
|---|
Electrical data
| Switching voltage OSSD, HIGH signal | 24 V |
|---|---|
| Electrical power consumption of the transmitter, maximum | 5 W |
| Electrical power consumption of the receiver, maximum | 5 W |
|---|---|
| Length of cable, maximum | 100 m |
Mechanical data - Dimensions
| Width | 27.8 mm |
|---|
| Height | 72 mm |
|---|
General data - Features
| Restart interlock (manual reset) | Yes |
|---|---|
| Integral system diagnostics, status | Yes |
| Number of beams | 1 |
| Wave length of the sensor | 880 nm |
| Beam coding available | Yes |
|---|---|
| Integral system diagnostics | Yes |
| Number of fail-safe digital outputs | 2 |
General data
| Standards | EN IEC 61496-2 | EN IEC 61496-1 |
|---|---|
| Enclosure material | Aluminium |
| Reaction time, maximum | 22 ms |
| Coding, light barrier beam | 2 |
|---|---|
| Gross weight | 180 g |
| Reaction time, minimum | 7 ms |
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 62061 |
|---|---|
| Category | 2 |
| Safety Integrity Level (SIL), suitable for applications in | 1 |
| Safety type in accordance with IEC 61496-1 | 2 |
| Performance Level, up to | c |
|---|---|
| PFH value | 1.50 x 10⁻⁸ /h |
| Mission time | 20 Year(s) |
Electrical data - Safety digital outputs
| Output current, (fail-safe output), maximum | 0.2 A |
|---|
| Design of control elements | p-type |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -30 °C |
| Protection class | III |
| Ambient temperature | -30 ... +50 °C |
|---|---|
| Storage and transport temperature, maximum | +70 °C |
Mechanical data - Connection technique
| Terminal connector, Recipient | Cable with connector plug M12, 5-pole |
|---|
| Terminal, Connector, Transmitter | Cable with connector plug M12, 4-pole |
|---|
Mechanical data
| Detection ability for test bodies at v = 1.6 m/s | 40 mm |
|---|---|
| Range, protection field, maximum | 15,000 mm |
| Range, protection field, minimum | 300 mm |
|---|
Accessory
| Recommended safety switchgear | PROTECT PSC1 | SRB-E-204ST |
|---|
Approvals - Standards
| Certificates | TÜV | cULus |
|---|
