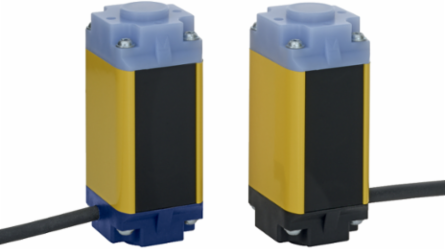

Schmersal 103013531 SLB240 Safety Light Barrier, Range 15 m, Compact Design, IP67
- MPN: 103013531
- PPN: SCM-103013531
CAD
$985.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SLB240 Safety Light Barrier, Range 15 m, Compact Design, IP67
Features
- Compact design With integral evaluation
- Range 15 m
- Safe OSSD outputs to PLc
- Automatic start or restart interlock
- Sturdy metal enclosure with M12 connector or cable
- Set-up tool and diagnostic indication
Documentation & Downloads
Specifications
Key Specifications
- Length
- 33 mm
- Height
- 72 mm
Width27.8 mm
Electrical data
- Switching voltage OSSD, HIGH signal
- 24 V
- Electrical power consumption of the transmitter, maximum
- 5 W
Electrical power consumption of the receiver, maximum5 W
Length of cable, maximum100 m

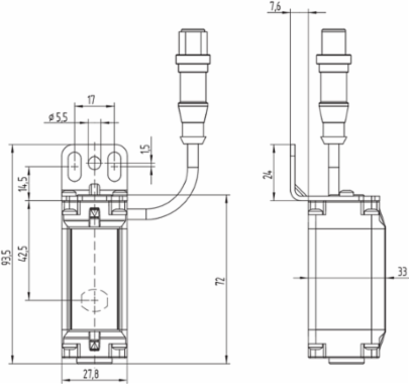

Mechanical data - Dimensions
- Width
- 27.8 mm
Height72 mm
General data - Features
- Restart interlock (manual reset)
- Yes
- Integral system diagnostics, status
- Yes
- Number of beams
- 1
- Wave length of the sensor
- 880 nm
Beam coding availableYes
Integral system diagnosticsYes
Number of fail-safe digital outputs2
General data
- Standards
- EN IEC 61496-2 | EN IEC 61496-1
- Enclosure material
- Aluminium
- Reaction time, maximum
- 22 ms
Coding, light barrier beam3
Gross weight180 g
Reaction time, minimum7 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 62061
- Category
- 2
- Safety Integrity Level (SIL), suitable for applications in
- 1
- Safety type in accordance with IEC 61496-1
- 2
Performance Level, up toc
PFH value1.50 x 10⁻⁸ /h
Mission time20 Year(s)
Electrical data - Safety digital outputs
- Output current, (fail-safe output), maximum
- 0.2 A
Design of control elementsp-type
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -30 °C
- Protection class
- III
Ambient temperature-30 ... +50 °C
Storage and transport temperature, maximum+70 °C
Mechanical data - Connection technique
- Terminal connector, Recipient
- Cable with connector plug M12, 5-pole
Terminal, Connector, TransmitterCable with connector plug M12, 4-pole
Mechanical data
- Detection ability for test bodies at v = 1.6 m/s
- 40 mm
- Range, protection field, maximum
- 15,000 mm
Range, protection field, minimum300 mm
Accessory
- Recommended safety switchgear
- PROTECT PSC1 | SRB-E-204ST
Approvals - Standards
- Certificates
- TÜV | cULus
