Schmersal 101216735 Safety Light Curtain SLC440, 10m Range, 33mm Length, IP67
Schmersal 101216735 Safety Light Curtain SLC440, 10m Range, 33mm Length, IP67
- MPN: 101216735
- PPN: SCM-101216735
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2123.58/ EA
Features
- Safety type 4 in accordance with IEC 61496-1
- Status and diagnostics via App with bluetooth
- active integrated set-up tool
- Blanking: fixed/floating
- Double acknowledgement/reset
- Integrated contactor control
- Beam coding
- Process safety with highest availability
- User-friendly parameter setting, no tools required
- optional degree of protection IP69 with protective enclosure (accessories)
Specifications
Electrical data
- Switching voltage OSSD, HIGH signal
- 24 V
- Electrical power consumption of the transmitter, maximum
- 5 W
Electrical power consumption of the receiver, maximum10 W
Note
- Note (General)
- I | In case of failure (interruption of the 0 V supply) the maximum leakage current is 1 mA.
Mechanical data - Dimensions
- Height of transmitter
- 331 mm
- Length of sensor
- 33 mm
Height of Receiver341 mm
Width of sensor27.8 mm
Scope of delivery
- Scope of delivery
- Kit with 2 mounting angles
General data - Features
- Restart interlock (manual reset)
- Yes
- Beam coding available
- Yes
- 7-segment display
- Yes
- Integral system diagnostics
- Yes
- Number of beams
- 12
- Wave length of the sensor
- 880 nm
Contactor control integratedYes
Blanking functionYes
Integral system diagnostics, statusYes
BluetoothYes
Number of fail-safe digital outputs2
General data
- Standards
- EN IEC 61496-2 | EN IEC 61496-1
- Gross weight
- 630 g
Enclosure materialAluminium
Reaction time, maximum10 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 62061
- Category
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Safety type in accordance with IEC 61496-1
- 4
Performance Level, up toe
PFH value5.14 x 10⁻⁹ /h
Mission time20 Year(s)
Electrical data - Safety digital outputs
- Output current, (fail-safe output), maximum
- 0.25 A
Design of control elementsp-type
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Protection class
- III
Ambient temperature-25 ... +50 °C
Storage and transport temperature, maximum+70 °C

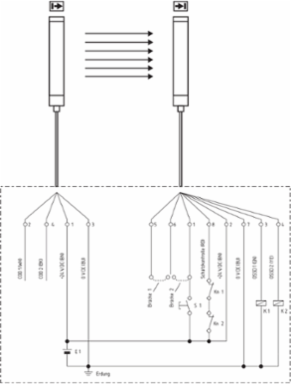

Mechanical data - Connection technique
- Termination
- Connector
- Terminal, Connector, Transmitter
- Connector plug M12, 4-pole
Terminal connector, RecipientConnector plug M12, 8-pole
Length of the connectable cable, maximum100 m
Mechanical data
- Detection ability for test bodies at v = 1.6 m/s
- 30 mm
- Range, protection field, minimum
- 300 mm
Height of the protection field250 mm
Range, protection field, maximum10,000 mm
Accessory
- Recommended safety switchgear
- SRB-E 301
Approvals - Standards
- Certificates
- TÜV | cULus
