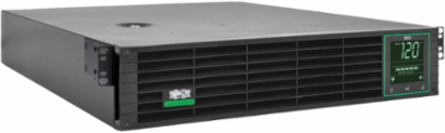

Tripp Lite SMART2200RM2UL SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, Lithium Iron Phosphate (LiFePO4) Batteries, 2U, LCD, USB, DB9

SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, Lithium Iron Phosphate (LiFePO4) Batteries, 2U, LCD, USB, DB9 - https://media.province-electric.com/tripplite/2020q1/0aa642a0da2a56e7dbdf02cfbd0a87e2809184f0-medium.png

SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, Lithium Iron Phosphate (LiFePO4) Batteries, 2U, LCD, USB, DB9

Tripp Lite SMART2200RM2UL SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, Lithium Iron Phosphate (LiFePO4) Batteries, 2U, LCD, USB, DB9

MPN: SMART2200RM2UL
UPC: 037332192646
PPN: TRP-SMART2200RM2UL

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4659.18/ EA

Qty:

Loading add to cart quantity...

Description

Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Special LiFePO4 battery provides long service life and more cycles.

Features

LiFePO4 battery offers longer life, more cycles and faster recharge
97% line-mode efficiency saves energy costs
4 NEMA 5-15R & 4 5-15/20R outlets—2 switchable via network interface
Compatible with Tripp Lite network management cards
11.7 min. runtime at half load; 5.1 min. at full load
To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
5-year limited warranty
$250,000 Ultimate Lifetime Insurance
Protects Mission-Critical Rack-Mounted Equipment
Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery
2 Load Banks with Switchable Outlets
Automatic Voltage Regulation (AVR)
EMI/RFI Line Noise Filtering
Interactive LCD Screen
Optional Network Management Cards
Communications Ports
Versatile Installation Options
Backed by Tripp Lite’s Ultimate Lifetime Insurance

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 570

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 5.1 min. (1920w)

DC System Voltage (VDC): 48

Expandable Runtime: No

Half Load Runtime (min.)11.7 min. (960w)

Battery Recharge Rate (Included Batteries)1.4 hours from 10% to 90% (typical, full load discharge)

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount

Minimum Required Rack Depth (inches): 24.27

Primary Form Factor: Rackmount

Primary UPS Height (mm): 87

Rack Height: 2U

Shipping Weight (lbs.): 55.00

UPS Power Module Dimensions (hwd, in.): 3.43 x 17.32 x 19.27

UPS Power Module Weight (lbs.): 41.78

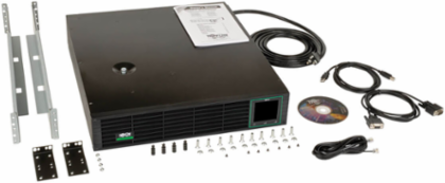

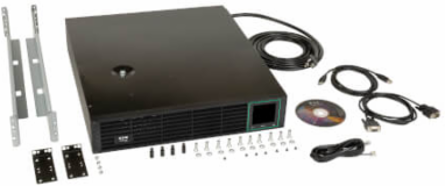

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Optional Mounting Accessory NotesOptional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm)489

Primary UPS Width (mm)440

Shipping Dimensions (hwd / in.)10.24 x 25.59 x 27.76

UPS Housing MaterialSteel

UPS Power Module Weight (kg)18.95

User Interface, Alerts & Controls

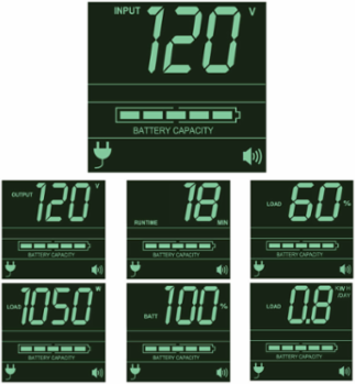

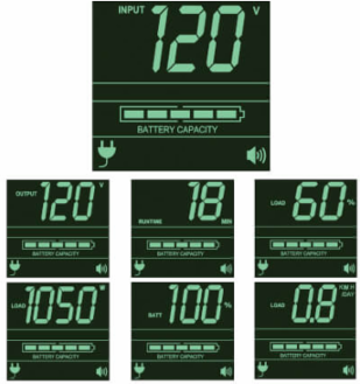

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%

Overvoltage CorrectionInput voltages between 127 and 145 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 83 and 95 are boosted by 24%

Input

Rated input current (Maximum Load): 16A (120V)

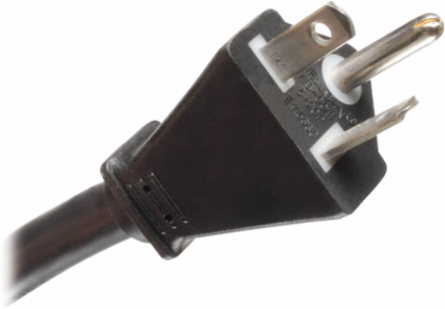

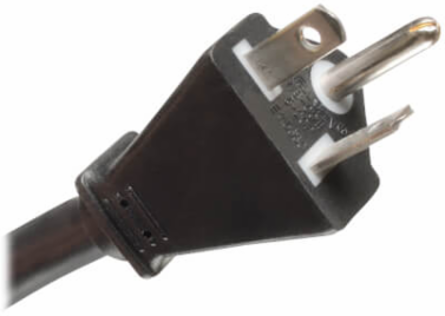

UPS Input Connection Type: 5-20P

Recommended Electrical Service: 20A 120V

Nominal Input Voltage(s) Supported120V AC

UPS Input Cord Length (ft.)10

Input PhaseSingle-Phase

Output

Output Volt Amp Capacity (VA): 2200

Output Watt Capacity (Watts): 1920

Power Factor: .87

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/- 5%

Output AC Waveform (AC Mode): Pure Sine wave

Nominal Output Voltage(s) Supported: 110V; 115V; 120V

Individually Controllable Load Banks: Yes

Output kVA Capacity (kVA)2.2

Output kW Capacity (kW)1.92

Nominal Voltage Details120v nominal output in battery mode

Output Voltage Regulation (Line Mode)-14%, +6%

Load Management ReceptaclesTwo switchable single-outlet load banks

Output AC Waveform (Battery Mode)Pure Sine wave

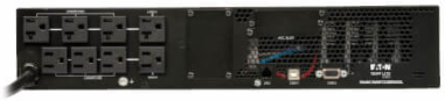

Output Receptacles(4) 5-15R; (4) 5-15/20R

Communications

Network Management Cards: SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD

Communications Cable: USB, DB9 and EPO cabling included

Network UPS Tools Compatibility: NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions

WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications

Communications InterfaceUSB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 1343

Audible Noise: 42.2 dBA typical / 50.6 dBA maximum, front side 1m

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)221

AC Mode Efficiency Rating (100% Load)97%

Overview

UPC Code: 037332192646

UPS TypeLine-Interactive

Special Features

Grounding Lug: Back panel grounding lug

Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Warranty

Product Warranty Period (Worldwide): 5-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)

High Voltage Transfer to Battery Power (Setpoint): 145

Low Voltage Transfer to Battery Power (Setpoint)83
