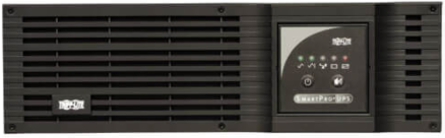

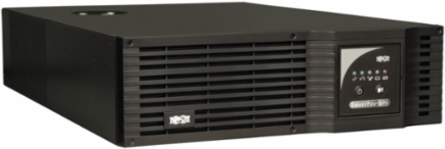

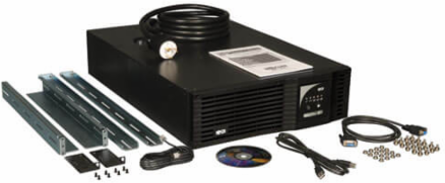

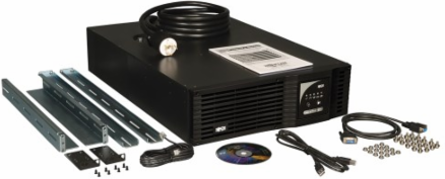

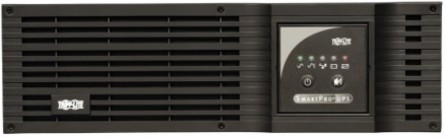

Tripp Lite SMART5000XFMRXL 5kVA Line-Interactive Sine Wave UPS, 3U Rackmount, 208 & 120V Output
- MPN: SMART5000XFMRXL
- UPC: 037332121462
- PPN: TRP-SMART5000XFMRXL
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
5kVA Line-Interactive Sine Wave UPS, 3U Rackmount, 208 & 120V Output
Features
- 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
- 208 & 120V output during brownouts to 167 and overvoltages to 260V
- USB, Serial, EPO & Network Management Card options
- 3U all-in-one chassis; 8 single-outlet switched load banks; 97% efficiency
- NEMA L6-30P input; 8 NEMA 5-15/20R, 2 L6-20R & 1 L6-30R outlets
- To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Documentation & Downloads
Specifications
Additional
- Output Volt Amp Capacity
- 5000 VA
- UPS Type
- Line-Interactive
- Output Voltage Regulation (Line Mode)
- 208 & 120V ±10%
- Output AC Waveform
- Pure Sine wave
- Input Current (Maximum Load)
- 24A
- Phase
- Single-Phase
- Full Load Runtime
- 8.5 min (3750W)
- Expandable Runtime
- Yes, with external battery packs
- Efficiency
- 97% (AC mode full load)
- Voltage Regulation Range
- 167V to 260V input voltage correction
- Undervoltage Correction
- Boosts input voltages by 12% for 167-194V
- Input Cord Length
- 10 ft
- Battery Replacement
- Hot-swappable, user replaceable
- Load Management
- 8 switchable single-outlet load banks
- Noise Level
- 45 dBA maximum, front side 1m
- Dimensions (HxWxD)
- 5.2 x 17.5 x 25 in (13.2 x 44.5 x 63.5 cm)
- Weight
- 143.3 lbs (65 kg)
- Storage Temperature
- -15 to 50 °C (5 to 122 °F)
- EMI/RFI Noise Suppression
- Yes
- Compliance
- UL1778, CSA, NOM, FCC Part 15 Category A
Output kW Capacity3.75 kW
Voltage208/120 V
Output Voltage Regulation (Battery Mode)±5%
Input Voltage208 V AC
Recommended Electrical Service30A 208V
Battery Voltage48 VDC
Half Load Runtime20 min (1875W)
Output Circuit Breakers20A double pole breaker supports L6-20R outlets; 20A branch rated breakers for 5-15/20R outlets; L6-30R unbreakered
Surge Suppression1020 Joules, instantaneous response
Overvoltage CorrectionReduces input voltages by 12% for 228-260V

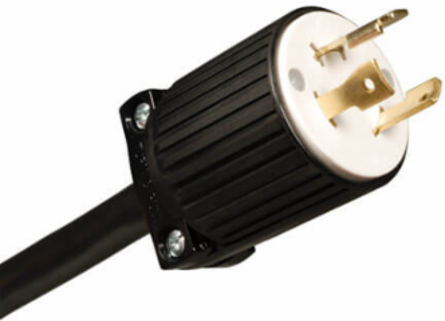

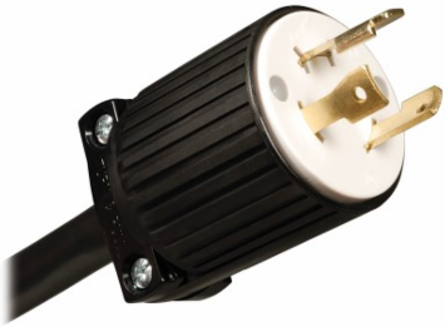

Input Connection TypeNEMA L6-30P
Battery Recharge Rate6.8 hours from 10% to 90%

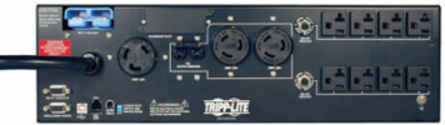

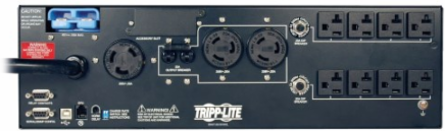

Output Receptacles(8) 5-15/20R; (2) L6-20R; (1) L6-30R
AC Mode BTU366 BTU/hr (full load)
Form Factor3U rackmount
Rack Height3U
Operating Temperature0 to 40 °C (32 to 104 °F)
Relative Humidity5 to 95%, non-condensing
Communications InterfaceUSB; DB9 Serial; EPO; Slot for SNMP/Web interface
