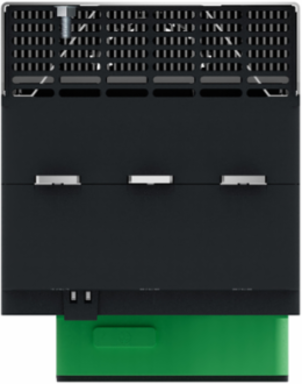

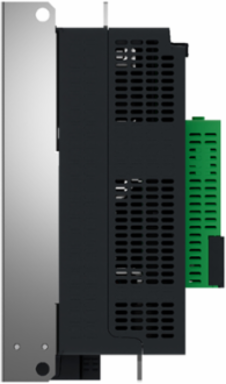

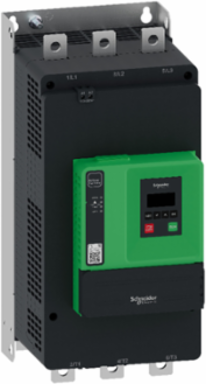

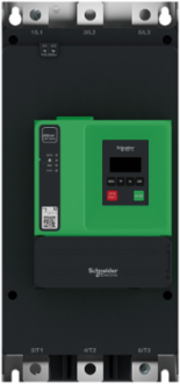

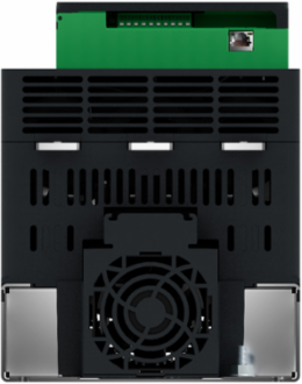

Soft starter, Altivar Soft Starter ATS430, 250A, 208 to 600V AC, control supply 110 to 230V AC

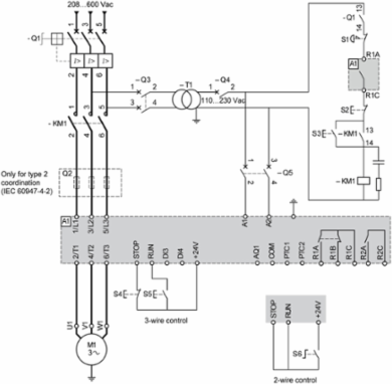

Soft starter, Altivar Soft Starter ATS430, 250A, 208 to 600V AC, control supply 110 to 230V AC - https://images.province-electric.com/SCH-ATS430C25S6/soft-starter-ats430-250a-medium-alt-vmdg.webp

Documentation & Downloads

Schneider Electric ATS430C25S6 Soft starter, Altivar Soft Starter ATS430, 250A, 208 to 600V AC, control supply 110 to 230V AC

MPN: ATS430C25S6
PPN: SCH-ATS430C25S6

CAD

$3941.09

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Soft starter, Altivar Soft Starter ATS430, 250A, 208 to 600V AC, control supply 110 to 230V AC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Brazil, France, Indonesia, Philippines, United States

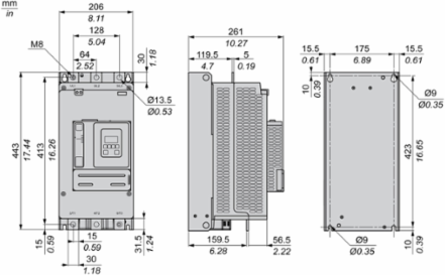

Depth261.2 mm

Communications & Management Attributes

Communication Port Protocol: RJ45, open style (DO, D1, PE, COM), Modbus serial

Complementary Attributes

Integrated Motor Overload Protection: true

Maximum Switching Current: relay outputs 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1

Maximum Horse Power Rating75 hp 208 V normal duty100 hp 230 V normal duty200 hp 460 V normal duty250 hp 575 V normal duty

Minimum Switching Current100 mA 12 V DC relay outputs

Important Information Attributes

Connector Type: 1 RJ45, open style

Electromagnetic Compatibility: conducted and radiated emissions level A conforming to IEC 60947-4-2, electrostatic discharge level 3 conforming to IEC 61000-4-2immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4voltage/current impulse level 3 conforming to IEC 61000-4-5damped oscillating waves level 3 conforming to IEC 61000-4-18immunity to conducted disturbances radio-frequency level 3 conforming to IEC 61000-4-6

Marking: cULus, CE, UKCA, CCC, RCM, EAC, KC

Protection Type: phase failure mains, thermal protection mains, thermal protection startercurrent overload motor, motor underload motor, excessive acceleration time motor, motor phase loss detection motor, protection against line phase inversion mains, external thermal protection motor, short-circuit between motor phase and earth motor

Utilisation Category: AC-3A, AC-53A

[Ue] Rated Operational Voltage: 208 V 75 hp normal duty230 V 75 kW normal duty, 230 V 100 hp normal duty400 V 132 kW normal duty, 440 V 132 kW normal duty460 V 200 hp normal duty500 V 160 kW normal duty, 525 V 160 kW normal duty575 V 250 hp normal duty, 208...600 V AC - 15...10 %)

Maximum Acceleration Under Vibratory Load (During Storage): 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz

Carbon Footprint Of The Distribution Phase [A4]: 4.092202122246323, 4 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]: 4 kg CO2 eq., 3.92068972265392

Carbon Footprint Of The Use Phase [B2 B3 B4 B6]: 5 493 kg CO2 eq., 5493.3632906268795

Local Publishable Date: 2026-03-26

Return Indicator: Y

Stock Policy: 2

Serviceability: No

Field Service Division: IDIBS

Weee Applicability: Finished product

Weee Product Category: 5

Eoli Availability Display: Yes

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant By Exemption

Rohs Eur Full Compliance Status: Compliant By Exemption

China Rohs Label: 5

Without Single Use Plastic: No

Dangerous Goods Code: LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT

Apparent Power: 70 VA

Device Connection: in line

Display Screen Available: true

Material Declaration: true

Network Frequency: 50-60 Hz

Operating Position: vertical +/- 10 degree

Overload Current: 400 % Ie for 13 s

Power Loss Per Device Current Dependent: 47 W

Power Losses: 2085 W during starting at 40 °C at 400% In

Product Destination: asynchronous motors

Product Specific Application: standard industrial machines

Returnability: Yes

Software Version: v6.1

Sustainable Packaging: No

Transmission Rate: 4.8…38.4 kbps for Modbus serial RJ450.3...115.2 kbps for Modbus serial open style (DO, D1, PE, COM)

Voltage Ramp: true

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Torque Control: true

Database Version: 2023-02

Pcr Version: PCR-4-ed4-EN-2021 09 06

Type Of Verification For The Pep: Independent external review

Functional-unit Description: The aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration phase with a torque control. It’s based on two phases dimmer with silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 410A in the case study which lead to drive several power motor depending of power network voltage ie 230V power motor of 110kW and 500V power motor of 250kW. Calculation of the environmental impacts is based on 20 years of product service lifetime. The usage profile taken into account is 50% uptime in use phase and 50% uptime in stand by phase.

Functional-unit Unit: Unit

Energy Consumption On Product Lifetime In Kwh: 13402.8

Energy Model - Installation [A5]: Electricity Mix; Low voltage; 2018; Europe, EU-27

Energy Model - End Of Life [C1-c4]: Electricity Mix; Low voltage; 2018; Europe, EU-27

Width Nominal: 206 mm

[Uc] Control Circuit Voltage: 24 V DC110...230 V AC 50-60 Hz - 15...10 %

[Uimp] Rated Impulse Withstand Voltage: 6 kV

Maximum Acceleration Under Shock Load (During Storage): 10 gn at 11 ms

Maximum Acceleration Under Vibrational Stress (During Operation): 1 gn at 13…200 Hz

Maximum Deflection Under Vibratory Load (During Storage): 1.75 mm at 2...9 Hz

On-load Factor: 50 %

With Safety Function Safe Direction (Sdi): false

With Safety Function Safe Position (Sp): false

With Safety Function Safe Stop 1 (Ss1): false

With Safety Function Safely Limited Position (Slp): false

With Sft Fct Safe Stop 2 (Ss2): false

Package Weight(Lbs): 26.500 kg

Warranty (In Months): 18

Customs Code: 8537109170

Display Type1 LED green-yellow)status1 LED Red)Warning/Error1 LED Yellow)COM1, 1 LED Yellow)COM2

Function Availablesingle direction, pre-heating, power monitoring, condition monitoring, user management, ports and services hardening, security event logging, cybersecure firmware update, small motor test

Motor Power Kw75 kW 230 V in line normal duty132 kW 400 V in line normal duty, 132 kW 440 V in line normal duty160 kW 500 V in line normal duty, 160 kW 525 V in line normal duty

Transmission FrameRTU : 1 RJ45, RTU : open style (DO, D1, PE, COM)

Certificate AgencycULus, CE, UKCA, CCC, RCM, EAC, KC

Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3

Maximum Acceleration Under Vibratory Load (During Transport)1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz

Carbon Footprint Of The End-of-life Phase [C1 To C4]41.812563936627846, 42 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase [A1 To A3]580 kg CO2 eq., 579.834148327662

Local Data StatusPublishable

Pre Comm Date2025-03-26

Stocking FlagN

Device TypeSoft starter - Soft starter

TraceabilityYes

Average Life Duration10 year(s)

Weee ScopeIn

Scope PerimeterAt least in Europe

End Of Life Doc RefENVEOLI2301007EN

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeYes

Rohs Eur Conformity Date2412

China Rohs In ScopeYes

With Recycled CardboardNo

Product Contributes To Saved And Avoided EmissionsNo

Product Kit IdentifierN

Data Format8 bits, odd, even or no parity, 1 or 2 bits to stop for Modbus serial RJ458 bits, configurable odd, even or no parity for Modbus serial open style (DO, D1, PE, COM)

Device Short NameATS430

Internal Bypasstrue

Method Of Accessslave Modbus serial

Number Of Addresses0-247 Modbus serial

Operating Rate10 cyc/h

Phase3 phase

Power Loss Static Current Independent19 W

Product AvailabilityStock - Normally stocked in distribution facility

Product Or Component Typesoft starter

Range Of ProductAltivar Soft Starter ATS430

Service Factor100

Supply Frequency50...60 Hz - 20...20 %

Total Lifecycle Carbon Footprint6 123 kg CO2 eq.

Type Of Polarizationno impedance Modbus serial

Volume Of Cooling Air106 m3/h

With Safety Function Safe Programmable Logicfalse

Pep CodeENVPEP2301007EN

Pep Verification Date2024-06-01

Psr VersionPSR-0005-ed3-EN-2023 06 06

Data Sourceextrapolated product

Functional-unit Quantity1

Reference Lifetime In Y20

Energy Model - Manufacturing [A1-a3]Indonesia, ID

Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27

Height Nominal443 mm

[Ie] Rated Operational Currentnormal duty 250 A in line 40 °C)

[Ui] Rated Insulation Voltage600 V

Maximum Acceleration Under Shock Impact (During Operation)15 gn at 11 ms

Maximum Acceleration Under Shock Load (During Transport)10 gn at 11 ms

Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz

Maximum Deflection Under Vibratory Load (During Transport)1.75 mm at 2...9 Hz

With Safety Function Safe Brake Management (Sbc/Sbt)false

With Safety Function Safe Operating Stop (Sos)false

With Safety Function Safe Speed Monitor (Ssm)false

With Safety Function Safe Torque Off (Sto)false

With Safety Function Safely Limited Speed (Sls)false

Nbr. Of Units In Pkg.1

Take-backNo

[In] Rated Current Pwr Loss Specifctn2250 A

Environment Attributes Main

Ambient Air Temperature For Operation: -25-40 °C (without derating), -25-40 °C (without derating)-25-40 °C (without derating), -25-40 °C (without derating)40-60 °C (with current derating of 1 % per °C above 40 °C)

Ambient Air Transport Temperature: -40-70 °C, -40-70 °C

Take Back: No

China Rohs Regulation: X

Circularity Profile: ENVEOLI2301007EN

Eu Rohs Directive: Compliant By Exemption

Nema Degree Of Protection: open type

Packaging Without Single Use Plastic: No

Relative Humidity: 5-95 % without condensation or dripping water EN/IEC 60068-2-3

Pep Verification Date: 2024-06-01

Psr Version: PSR-0005-ed3-EN-2023 06 06

Ambient Air Temperature For Storage-40-70 °C, -40-70 °C

Operating Altitude<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m

Recycled Metal Content At Cr Level0 %

Carbon Footprint6123.02289473607

Environmental DisclosureENVPEP2301007EN

Ip Degree Of ProtectionIP00

Packaging Made With Recycled CardboardNo

Reach RegulationReference contains Substances of Very High Concern above the threshold

Pep CodeENVPEP2301007EN

Pcr VersionPCR-4-ed4-EN-2021 09 06

Type Of Verification For The PepIndependent external review

General Attributes

Phase: 3 phase

Range Of Product: Altivar Soft Starter ATS430

Product Or Component Typesoft starter

ETIM

ETIM 8: EC000640

ETIM 9EC000640

Output Attributes

Analogue Output Type: current output AQ1 : 0...20 mA/4...20 mA , impedance< 500 Ohm, voltage output AQ1 : 0...10 V , impedance> 470 Ohm

Analogue Output Number: 1

Output Current Drift: 150-700 %

Relay Output Typerelay outputs R1A, R1C NOrelay outputs R1B, R1C NC, relay outputs R2A, R2C NO

Discrete Output Number0

Relay Output Number2

Input Attributes

Analogue Input Type: PTC1 : PTC temperature probe, PTC2 : PTC temperature probe

Discrete Input Type: STOP) digital input, 4.4 kOhm, RUN) digital input, 4.4 kOhm, DI3) digital input, 4.4 kOhm, DI4) digital input, 4.4 kOhm

Analogue Input Number: 1

Discrete Input Logicdigital input STOP 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input RUN 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI3 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI4 0...< 5 V <= 2 mA > 11 V, >= 5 mA

Input CompatibilitySTOP digital input level 1 PLC EN/IEC 61131-2, RUN digital input level 1 PLC EN/IEC 61131-2, DI3 digital input level 1 PLC EN/IEC 61131-2, DI4 digital input level 1 PLC EN/IEC 61131-2

Discrete Input Number4
