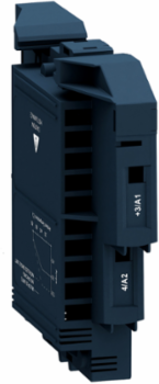

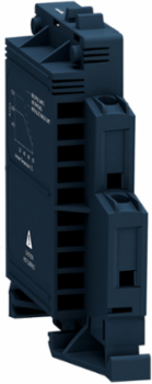

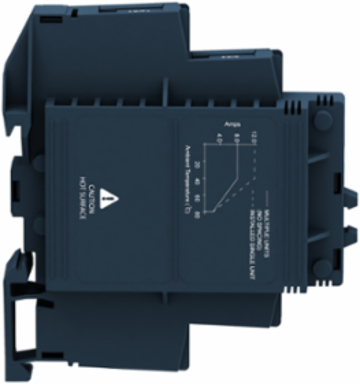

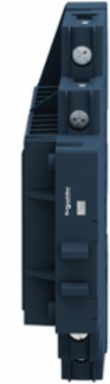

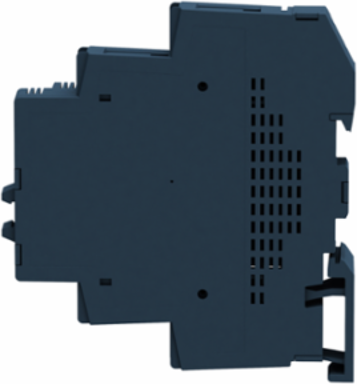

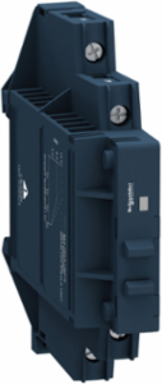

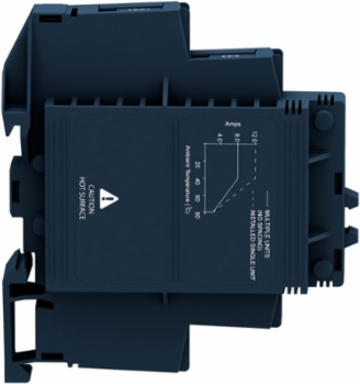

Schneider Electric SSM1D212BD Harmony Solid State Relay 12A 4-32V DC Input 1-60V DC Output DIN Rail Mount

  • MPN: SSM1D212BD
  • PPN: SCH-SSM1D212BD
  • UNSPSC: 39122333
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $69.85

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.

    Features

    • Built-in heatsink for maximum performance and less spare parts to manage
    • Silent and reliable due to the absence of moving contacts
    • Resistant to shocks, vibration and pollution, which makes it ideal for harsh industrial environments
    • Helps reduce your maintenance and downtime costs
    • Visual indicator LED for a simpler troubleshooting and commissioning
    • Clear schematic on the side of the socket, for easier wiring and maintenance

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginMexico

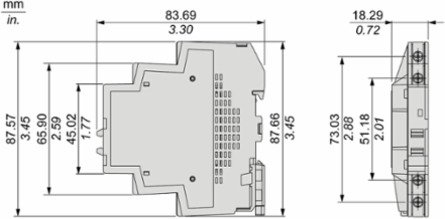

    Depth83.5 mm
    Weight58.2 g

    Complementary Attributes

    Maximum Voltage Drop<0.5 V on-state, <0.5 V on-state<0.5 V on-state, <0.5 V on-state
    Absolute Maximum Voltage60 V
    Maximum Leakage Current0.1 mA off-state
    Minimum Switching Voltage4 V DC turn-on
    Ui Rated Insulation Voltage60 V
    Uc Control Circuit VoltageDC, 4...32 V
    Line Rated Current12 A
    Maximum Switching Voltage1 V DC turn-off
    Rated Current12 A

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Dielectric Strength4 kV DC for input/output, 4 kV DC for input or output to case
    Connections Terminalsscrew terminals 1 x 0.3...1 x 1.5 mm², 22 AWG...16 AWG) input, screw terminals 1 x 0.3...1 x 2.5 mm², 22 AWG...14 AWG) output, screw connectors
    Certificate AgencyCSA, UL
    Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.07793564035534604
    Carbon Footprint Of The Manufacturing Phase A1 To A30.3 kg CO2 eq., 0.3242329468944113
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Short NameSSM
    Insulation Resistance1000 MOhm at 500 V DC
    Local SignallingLED (green) for input status
    Mounting Supportsymmetrical DIN rail
    Overvoltage CategoryIII
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typemodular DIN rail relay
    Resistance0.045 Ohm on-state
    ReturnabilityYes
    Sustainable PackagingYes
    Output Voltage 351...60 V DC
    Data Sourceextrapolated product
    Width Nominal11 mm
    Customs Code8536410060
    Functional Unit DescriptionTo provide reliable switching and control of industrial AC and DC electrical loads for a reference service life of 10 years with operating at an average utilization rate of 20%, while ensuring fast, silent, and maintenance-free operation through solid-state switching technology.
    Functional Unit Unitunit
    Recyclability Potential In %94
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Tightening Torque0.5...0.8 N.m for input, 0.5...0.8 N.m for output
    Control Circuit Voltage4...32 V
    Carbon Footprint Of The Distribution Phase A40.003673134463102567, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0017214034457092992, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B63 kg CO2 eq., 3.405078226601206
    Local Publishable Date2026-08-10
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2607159EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Control Typewithout test button
    Flame RetardanceV0 conforming to UL 94
    Load Current0.0025-12 A
    MarkingCE
    Number Of Channels1
    Phase1 phase
    Product Configuration Typerelay configuration
    Range Of ProductHarmony Solid State Relays
    Response Time1.7 ms (turn-on)0.3 ms (turn-off)
    Software Versionv6.2.5-6
    Total Lifecycle Carbon Footprint4 kg CO2 eq.
    Database Version2024-01
    Height Nominal87.5 mm
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10

    Environment Attributes Main

    Ambient Air Temperature For Operation-30-80 °C, -30-80 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint3.8126413517597753
    Environmental DisclosureENVPEP2607159_V1
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2607159_V1
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-30-100 °C, -30-100 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2607159EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2026-09-15
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase1 phase
    Range Of ProductHarmony Solid State Relays
    Product Or Component Typemodular DIN rail relay

    ETIM

    ETIM 8EC002055
    ETIM 10EC002055
    ETIM 9EC002055

    Output Attributes

    Output Switching ModeDC switching, DC switching
    Output Voltage1...60 V DC
    Solid State Output TypeDC switching, Mosfet output

    Surge Protection And Filtering Attributes

    Surge Current100 A 10 ms

    Input Attributes

    Input Current Limits8-11 mA

    Overview Attributes

    Device Presentationcomplete product
