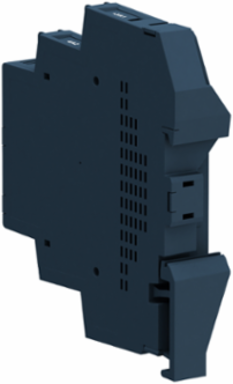

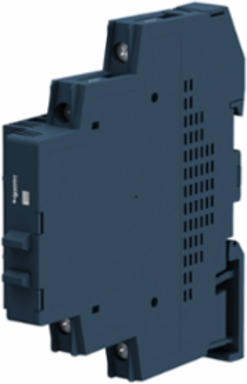

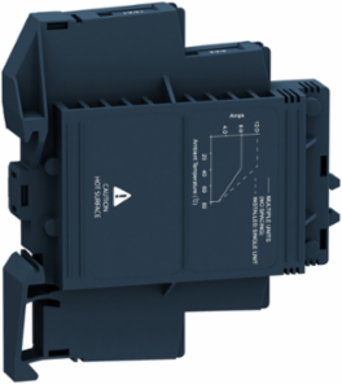

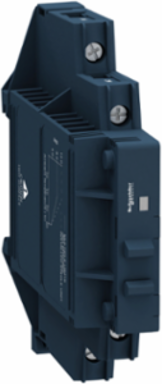

Schneider Electric SSM1A112P7 Harmony Solid State Relay, 12A, DIN Rail Mount, 200-265V AC Input, 24-280V AC Output
- MPN: SSM1A112P7
- PPN: SCH-SSM1A112P7
CAD
$69.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 200V to 265V AC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Solid State Relays
- Product Or Component Type
- solid state relay up to 20 A
- Number Of Channels
- 1
Output Switching Modezero voltage switching
Network Number Of Phases1 phase
Device Short NameSSM
Complementary
- Cos Phi
- 0.5-0.5 with maximum load)
- Height
- 90.3 mm
- Motor Power Hp
- 0.33 hp 40 °C 240 V AC
- Insulation Resistance
- 1000 MOhm 500 V DC
- Maximum I²T For Fusing
- 2560 A².s 10 ms 50 Hz || 2330 A².s 8.33 ms 60 Hz
- Connections - Terminals
- screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
- Response Time
- 0.5 cycle turn-on) || 30 ms turn-off)
- Net Weight
- 0.09 kg
- Maximum Leakage Current
- 0.1 mA off-state
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Maximum Switching Voltage
- 90 V AC turn-off
- Capacitance Unbalance
- 10 pF input/output
- Width
- 18 mm
- Overvoltage Category
- III
[Uc] Control Circuit Voltage200...265 V AC
Output Voltage24...280 V AC
Tightening Torque0.5...0.8 N.m input || 0.5...0.8 N.m output
Mounting Supportsymmetrical DIN rail
Maximum Voltage Drop<1.3 V on-state
Surge Current715 A 16.6 ms || 750 A 20 ms
Load Current0.15-12 A
Minimum Switching Voltage200 V AC turn-on
Absolute Maximum Voltage600 V
Local Signallinginput status LED green)
Solid State Output TypeSCR output || zero voltage switching
[In] Rated Current12 A
Input Current Limits2.5-3.5 mA
Depth83.7 mm
Environment
- Product Certifications
- CSA || UL
- Standards
- IEC 60950-1 || IEC 61000 || IEC 62314
- Dielectric Strength
- 4 kV AC input/output || 4 kV AC input or output to case
- Ip Degree Of Protection
- IP20
- Ambient Air Temperature For Storage
- -30-100 °C
Ambient Air Temperature For Operation-30-80 °C
Pollution Degree2
MarkingCE
Flame RetardanceV0 UL 94
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307069EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1307069EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
