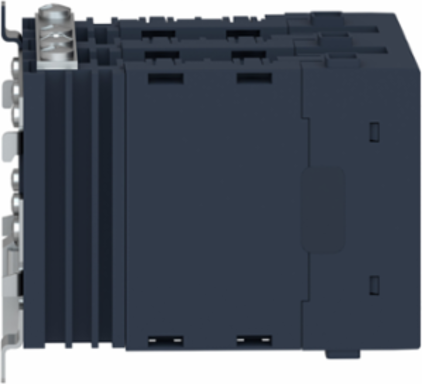

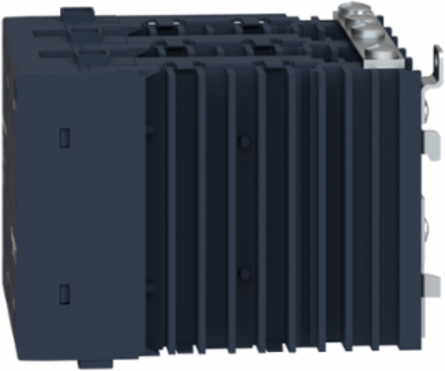

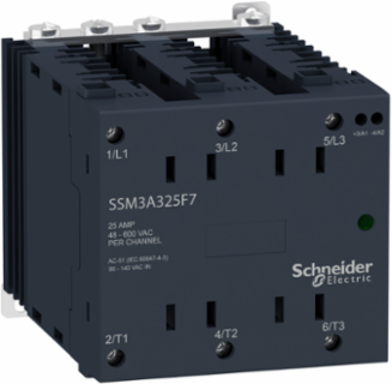

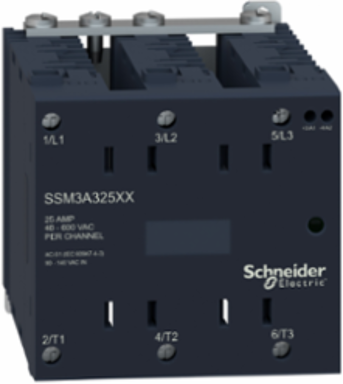

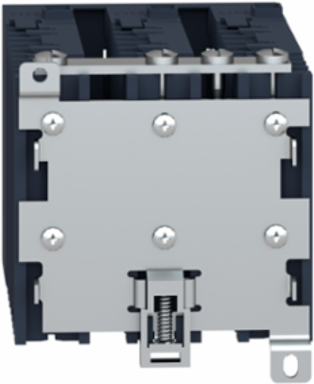

Schneider Electric SSM3A325F7 Solid State Relay, 25A, 90-140V AC Input, 48-600V AC Output
- MPN: SSM3A325F7
- PPN: SCH-SSM3A325F7
CAD
$278.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This static relay has a built-in heatsink for limited derating while limiting occupied space in panel It also has a visual indicator showing the status of its input Its rated current is 25 A, is controlled with a 90 to 140 V AC circuit, has a rated load voltage of 48 to 600 V AC output. It mounts on symetrical DIN rails and comes with a secure mounting latch
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Solid State Relays
- Product Or Component Type
- solid state relay up to 30 A
- Number Of Channels
- 3
Output Switching Modezero voltage switching
Network Number Of Phases3 phases
Device Short NameSSM3
Complementary
- Cos Phi
- 0.5-0.5 with maximum load)
- Output Voltage
- 48...600 V AC
- Tightening Torque
- 0.6...0.7 N.m input || 1.36...1.7 N.m output
- Mounting Support
- symmetrical DIN rail
- Maximum Voltage Drop
- <1.35 V on-state
- Surge Current
- 286 A 20 ms 50 Hz || 300 A 16.6 ms 60 Hz
- Load Current
- 0.1-25 A
- Maximum Leakage Current
- 0.25 mA off-state
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Solid State Output Type
- zero voltage switching
- [In] Rated Current
- 25 A
- Input Current Limits
- 15-19 mA
[Uc] Control Circuit Voltage90...140 V AC
Motor Power Hp1 hp 40 °C 240 V AC || 2 hp 40 °C 380 V AC || 3 hp 40 °C 480 V AC
Insulation Resistance1000 MOhm
Maximum I²T For Fusing410 A².s 10 ms 50 Hz || 374 A².s 8.3 ms 60 Hz
Connections - Terminalsscrew terminals 0.2...1.3 mm², AWG 24...AWG 16) input || screw terminals 1.3...5.3 mm², AWG 16...AWG 10) output
Response Time30 ms turn-off) || 20 ms turn-on)
Net Weight0.74 kg
Absolute Maximum Voltage1100 V
Local Signallinginput status LED green)
Capacitance Unbalance8 pF input/output
Switching Voltage90 V turn-on || 10 V turn-off
Overvoltage CategoryIII
Environment
- Product Certifications
- UL || EAC || CSA
- Standards
- IEC 60950-1 || UL 508 || CSA C22.2 No 14
- Dielectric Strength
- 4 kV AC input/output || 4 kV AC input or output to case
- Ip Degree Of Protection
- IP20
Ambient Air Temperature For Operation-20-80 °C
Pollution Degree2
MarkingCSA || UL || CE || EAC
Ambient Air Temperature For Storage-40-100 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1508007EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1508007EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
