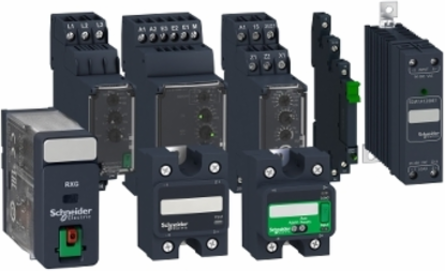

Schneider Electric SSP1D412BD Harmony Solid State Relay, 12A, Panel Mount, DC Switching, 3.5-32V DC Input
- MPN: SSP1D412BD
- PPN: SCH-SSP1D412BD
CAD
$85.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 12A, is controlled withA 3.5V to 32V DC circuit, has a rated load voltage of 1V to 150V DC output. It also has a test button for easy debugging, testing and commissioning 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Solid State Relays
- Output Switching Mode
- DC switching
- Network Number Of Phases
- 1 phase
- [In] Rated Current
- 12 A
Mounting Supportpanel
Product Or Component Typesolid state relay up to 20 A
Solid State Output TypeDC switching || Mosfet output
Device Short NameSSP1
Complementary
- Safety Reliability Data
- B10d = 1731395 || MTTFd = 1875.9 years
- Insulation Resistance
- 1000 MOhm 500 V DC
- Maximum Voltage Drop
- <2.8 V on-state
- Dielectric Strength
- 2.5 kV AC input/output || 2.5 kV AC input or output to case
- Surge Current
- 31 A 10 ms
- Local Signalling
- LED, green input
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV output to case
- Maximum Leakage Current
- 0.3 mA off-state
- Device Presentation
- complete product
- Capacitance Unbalance
- 50 pF input/output
- Protection Device Type
- type 1 - 10 A miniature circuit breaker (MCB) B || type 2 - 6 A miniature circuit breaker (MCB) B
Tightening Torque1.5...1.7 N.m input || 2...2.2 N.m output
Thermal Resitance0.71 °C/W junction to case
Connections - Terminalsscrew terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output
Response Time0.1 ms turn-on) || 0.1 ms turn-off)
Load Current0.001-12 A
Net Weight89.2 g
Minimum Switching Voltage3.5 V DC turn-on
Ip Degree Of ProtectionIP20
Maximum Switching Voltage1 V DC turn-off
Input Current Limits10-15 mA
Environment
- Product Certifications
- CE || UL || CSA || EAC
- Standards
- IEC 62314 || UL 508 || CSA C22.2 No 14-13 || IEC 60950-1
- Marking
- CSA || UL || CE || EAC
- Overvoltage Category
- III
Ambient Air Temperature For Operation-40-80 °C
Pollution Degree2
Ambient Air Temperature For Storage-40-125 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505006EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1505006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
