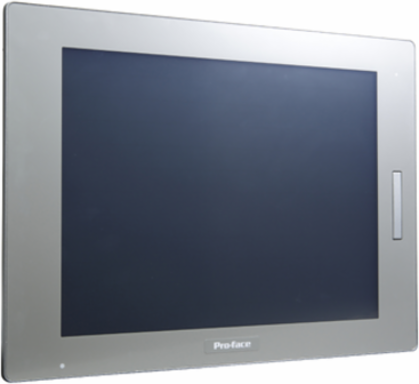

Pro-Face PFXSP5700TPD 15" SP5700T Premium Display
- MPN: PFXSP5700TPD
- PPN: SCH-PFXSP5700TPD
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SP5000 Premium Display 15-inch TFT, 16M colors, XGA 1024 x 768, Analog Touch Panel(Multi touch), Front USB, 24Vdc
Features
- The 15-inch TFT color LCD screen features a crisp XGA resolution (1024 x 768 pixels) and supports 16 million colors, delivering highly detailed and vibrant visualization for dense, data-heavy automation interfaces. Backed by a 50,000-hour white LED backlight and integrated auto-scaling functionality, it automatically adapts to changing ambient luminosity to guarantee clear visibility while significantly reducing long-term maintenance overhead.
- Engineered specifically for the Pro-face SP5000 Smart Portal series, this standalone premium display seamlessly connects with compatible power or open box modules using embedded mounting clips. This modular architecture allows you to easily swap, upgrade, or service individual components without tearing down the entire unit, mitigating costly assembly downtime during critical production cycles.
- Built to survive punishing factory floors, the front face achieves IP65F, IP66F, and IP67F ingress protection ratings when properly sealed with the provided installation gasket. This robust construction safeguards your internal electronics against dust-tight particles, oils, and low-to-high pressure water jets, preventing moisture penetration during standard sanitation cycles.
- The front bezel features an easily accessible, built-in interface panel containing one USB 2.0 Type A port and one USB Mini-B port, allowing on-site staff to quickly plug in flash drives or diagnostic tools without opening the main enclosure door. This design bypasses traditional safety hazards and keeps internal control systems secure, while a screw-locked protective cover maintains full environmental ratings when the ports are not in use.
- This unit is fully certified under UL 61000-4-2, CSA C22.2 No 213, CE, and ATEX, making it compliant for deployment in Class I, Division 2 (Groups A, B, C, and D) hazardous locations. These stringent regulatory approvals eliminate compliance friction and ensure safe, reliable operations across global chemical, maritime, and manufacturing environments.
Documentation & Downloads
Specifications
Additional
- Voltage
- 12-24 Vdc (limits 10.8-29.9 Vdc)
- Operating Temperature
- 0 to 60 C (32 to 140 F)
- Display Size
- 15 in
- Resolution
- 1024 x 768 pixels
- Touch Screen
- Resistive film, Multi-touch
- Panel Cut Dimensions
- W383.5 x H282.5 mm (W15.1 x H11.12 in)
- Ingress Rating
- IP65 (IP65F, IP66F or IP67F with enhanced front USB cover)
- Backlight
- White LED
- Brightness
- Max 400 cd/m2, Min 4 cd/m2, Adjustable 0-100
Power Consumption57W or less (with box module), 22W or less (display module only)
Storage Temperature-20 to 60 C (-4 to 140 F)
Display TypeTFT Color LCD
Display Colors16 Million
External DimensionsW397 x H296 x D67 mm (W15.6 x H11.7 x D2.64 in)
Weight4.5 kg (9.9 lb) or less
CertificationsCE, ATEX, RoHS, GOST-R, UL 508/c-UL, CSA C22.2 No142, KC, EAC, ABS, BV, CCS, DNV, GL, LR, RINA, NK
Backlight Service Life50,000 hours or more at 25 C before brightness decreases to 50%
