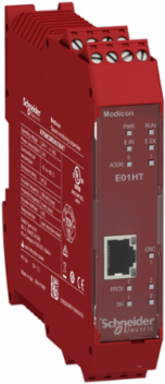

Schneider Electric XPSMCMEN0100HT Safe Speed Monitoring Module, 24V DC, 114.5mm Width

  • MPN: XPSMCMEN0100HT
  • PPN: SCH-XPSMCMEN0100HT

CAD

$1267.94

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Safe Speed Monitoring Module, 24V DC, 114.5mm Width

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Italy
Depth22.5 mm

Complementary Attributes

Maximum Input Frequency
5 kHz sensor, 300 kHz encoder HTL
Integrated Connection Typebackplane expansion bus

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Cable Cross Section
0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel, 0.2-1 mm² - 24 AWG...18 AWG solid without cable end
Local Signalling
1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 1 LED yellow ENC encoder connection status2 LEDs yellow PROX proximity sensors connection status2 LEDs yellow SH speed monitoring status
Vibration Resistance
+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals
2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.39226521239886447, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
10 kg CO2 eq., 9.590452951561938
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
No
Field Service Division
IDIBS
Weee Scope
In
Scope Perimeter
At least in Europe
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1847
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Market Segmentation
Industrial
Device Short Name
XPSMCM
Function Of Module
speed monitoring
Mounting Support
omega 35 mm DIN rail EN 50022
Overvoltage Category
II
Power Dissipation In W
3 W
Product Or Component Type
safe speed monitoring module
Range Of Product
Preventa Safety automation
Sensor Type
inductive proximity sensor
Shock Resistance
10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Sustainable Packaging
No
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2024-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
262.8
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
Height Nominal
99 mm
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 61800-5
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connection1 connector RJ45 EIA/TIA-568-A, screw terminal
Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061
Certificate AgencyRCM, cULus, TÜV
Carbon Footprint Of The Distribution Phase [A4]0.07839800495082133, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2 kg CO2 eq., 0.21969641551918612
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]127 kg CO2 eq., 127.2214464091827
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Insulation250 V AC between power supply and housing IEC 61800-5-1
Number Of Terminal Blocks4
Power Consumption In W3 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
ReturnabilityNo
Service Life20 year(s)
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint138 kg CO2 eq.
Pep CodeENVPEP2606036_V1
Pep Verification Date2026-06-22
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y1020
Energy Model - Manufacturing [A1-a3]Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
Energy Model - Use [B6]Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27
Recyclability Potential In %2
Width Nominal114.5 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Package Weight(Lbs)238.0 g
Warranty (In Months)18

Environment Attributes Main

Take Back
No
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Ambient Air Temperature For Operation
-10-55 °C-10-55 °C
Environmental Disclosure
ENVPEP2606036_V1
Ip Degree Of Protection
IP20 enclosure)
Packaging Without Single Use Plastic
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Code
ENVPEP2606036_V1
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint137.5022589936135
Ambient Air Temperature For Storage-20-85 °C-20-85 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
Pep Verification Date2026-06-22
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
safe speed monitoring module
Range Of ProductPreventa Safety automation

ETIM

ETIM 8
EC001449
ETIM 9EC001449

Input Attributes

Maximum Input Frequency
5 kHz sensor, 300 kHz encoder HTL
Discrete Input Voltage24 V DC
