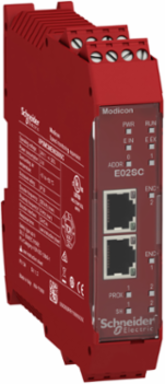

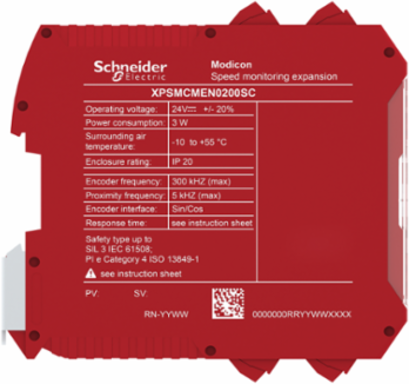

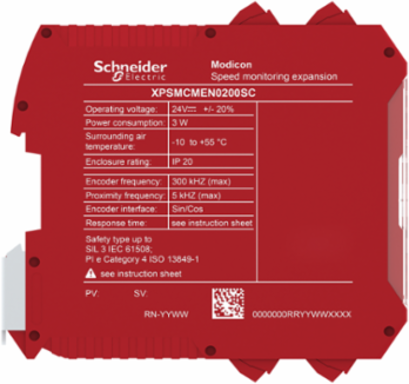

Schneider Electric XPSMCMEN0200SC Safe Speed Monitoring Module, 2 SinCos Encoder Inputs, 24V DC

  • MPN: XPSMCMEN0200SC
  • PPN: SCH-XPSMCMEN0200SC
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1758.55

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Safe Speed Monitoring Module, 2 SinCos Encoder Inputs, 24V DC

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Italy

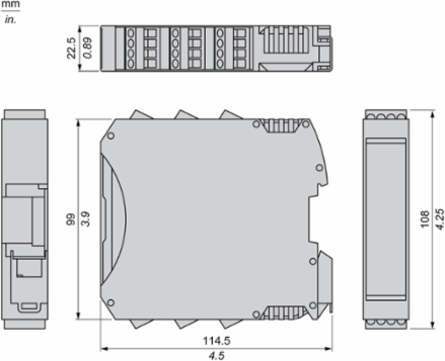

    Depth22.5 mm

    Complementary Attributes

    Maximum Input Frequency5 kHz sensor, 500 kHz encoder SinCos
    Integrated Connection Typebackplane expansion bus

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Cable Cross Section0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel, 0.2-1 mm² - 24 AWG...18 AWG solid without cable end
    Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 2 LEDs yellow PROX proximity sensors connection status2 LEDs yellow SH speed monitoring status2 LEDs yellow ENC encoder connection status
    Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4202841561416405, 0.4 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.275485305244933
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1847
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Device Short NameXPSMCM
    Function Of Modulespeed monitoring
    Mounting Supportomega 35 mm DIN rail EN 50022
    Overvoltage CategoryII
    Power Dissipation In W3 W
    Product Or Component Typesafe speed monitoring module
    Range Of ProductPreventa Safety automation
    Sensor Typeinductive proximity sensor
    Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh262.8
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal99 mm
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109160
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Electrical Connection2 connectors RJ45 EIA/TIA-568-A, screw terminal
    Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061
    Certificate AgencyRCM, cULus, TÜV
    Carbon Footprint Of The Distribution Phase [A4]0.08399786244730857, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.2 kg CO2 eq., 0.2353890166276994
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]127 kg CO2 eq., 127.2214464091827
    Local Publishable Date2025-11-25
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Labele
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    Insulation250 V AC between power supply and housing IEC 61800-5-1
    Number Of Terminal Blocks4
    Power Consumption In W3 W
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Quality LabelsCE
    ReturnabilityNo
    Service Life20 year(s)
    Software Versionv6.2.5-6
    Total Lifecycle Carbon Footprint138 kg CO2 eq.
    Pep CodeENVPEP2606036_V1
    Pep Verification Date2026-06-22
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y1020
    Energy Model - Manufacturing [A1-a3]Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
    Energy Model - Use [B6]Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27
    Recyclability Potential In %2
    Width Nominal114.5 mm
    [Us] Rated Supply Voltage24 V - 20...20 % DC
    Package Weight(Lbs)236.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation-10-55 °C-10-55 °C
    Environmental DisclosureENVPEP2606036_V1
    Ip Degree Of ProtectionIP20 enclosure)
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep CodeENVPEP2606036_V1
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Reach Free ShvcYes
    China Rohs RegulationX
    Carbon Footprint138.23660274964428
    Ambient Air Temperature For Storage-20-85 °C-20-85 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Relative Humidity10-95 %
    Pep Verification Date2026-06-22
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typesafe speed monitoring module
    Range Of ProductPreventa Safety automation

    ETIM

    ETIM 8EC001449
    ETIM 9EC001449

    Input Attributes

    Maximum Input Frequency5 kHz sensor, 500 kHz encoder SinCos
    Discrete Input Voltage24 V DC
