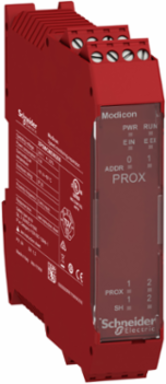

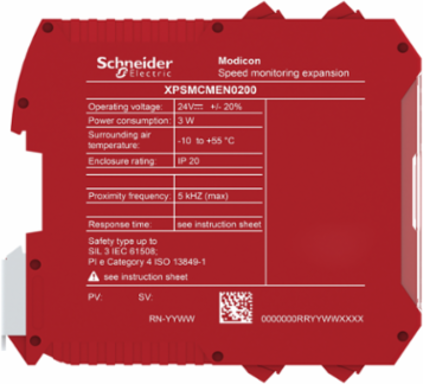

Schneider Electric XPSMCMEN0200 Safe Speed Monitoring Module, 24V DC, 5kHz Frequency, 114.5mm Width
- MPN: XPSMCMEN0200
- PPN: SCH-XPSMCMEN0200
CAD
$892.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Safe Speed Monitoring Module, 24V DC, 5kHz Frequency, 114.5mm Width
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy
Depth22.5 mm
Complementary Attributes
- Integrated Connection Type
- backplane expansion bus
Maximum Input Frequency5 kHz sensor
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cable Cross Section
- 0.2-1.5 mm² flexible without cable end, 0.25-1 mm² flexible with cable end, without bezel, 0.2-1 mm² solid without cable end0.2-2.5 mm² flexible without cable end, 0.2-2.5 mm² solid without cable end, 0.25-2.5 mm² flexible with cable end, with bezel, 0.25-2.5 mm² flexible with cable end, without bezel, 0.5-1.5 mm² flexible with cable end, with double bezel
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- Safety Level
- can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, type 4 IEC 61496-1, SILCL 3 IEC 62061
- Certificate Agency
- cULus, TÜV, RCM
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1847
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Device Short Name
- XPSMCM
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Number Of Terminal Blocks
- 4
- Power Consumption In W
- 3 W
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Returnability
- No
- Service Life
- 20 year(s)
- Sustainable Packaging
- No
- Height Nominal
- 99 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 61800-5
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connection2 connectors RJ45 EIA/TIA-568-A, screw terminal
Local Signalling1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 2 LEDs yellow PROX proximity sensors connection status, 2 LEDs yellow SH speed monitoring status
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Function Of Modulespeed monitoring
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Power Dissipation In W3 W
Product Or Component Typesafe speed monitoring module
Range Of ProductPreventa Safety automation
Sensor Typeinductive proximity sensor
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

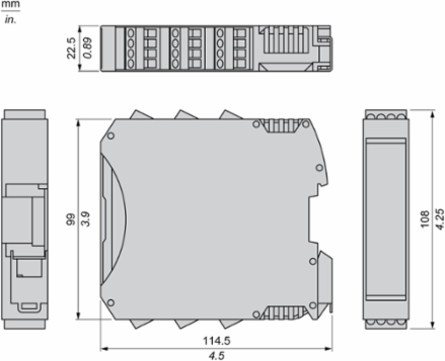

Width Nominal114.5 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Package Weight(Lbs)224.0 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -20-85 °C-20-85 °C
- Ip Degree Of Protection
- IP20 enclosure)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Ambient Air Temperature For Operation-10-55 °C-10-55 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
General Attributes
- Product Or Component Type
- safe speed monitoring module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Input Attributes
- Discrete Input Voltage
- 24 V DC
Maximum Input Frequency5 kHz sensor
