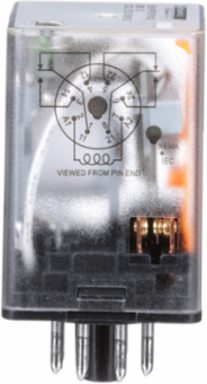

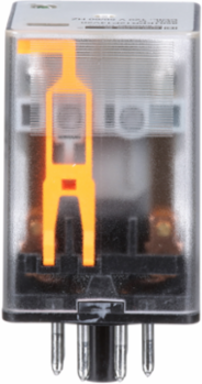

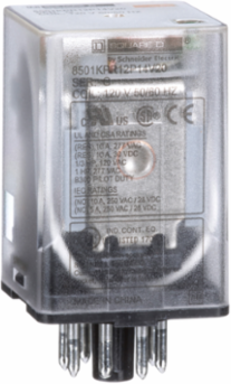

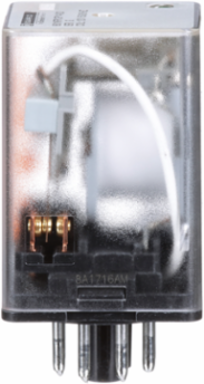

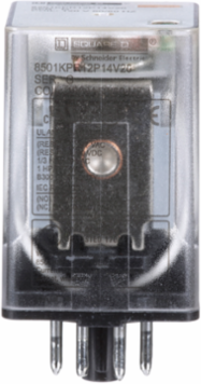

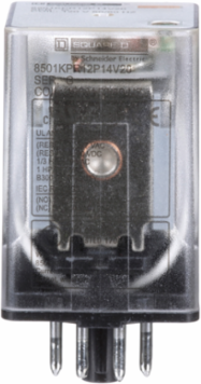

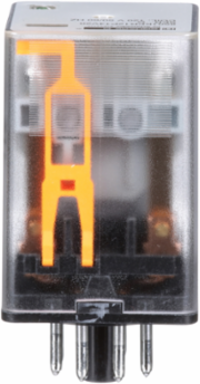

Square D 8501KPR12P14V20 Harmony DPDT Relay, 10A at 120V AC, 1 HP at 277V AC, 2NO + 2NC
- MPN: 8501KPR12P14V20
- UPC: 785901153726
- PPN: SCH-8501KPR12P14V20
CAD
$70.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Depth1.4 in
Complementary Attributes
- Maximum Switching Voltage
- 300 V AC, 30 V DC
- Rated Power In Hp
- 1 hp 277 V AC, 0.33 hp 120 V AC
Rated Breaking Capacity3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 10 A 277 V AC resistive control circuit UL 508, 10 A 30 V DC resistive control circuit UL 508
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 20 ms - pick-up, 20 ms - drop-out
- Carbon Footprint Of The Distribution Phase [A4]
- 0.011862795, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.000731471, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 25 kg CO2 eq., 24.5363507625
- Local Publishable Date
- 2026-03-25
- Future Imap
- 39.97
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI1310013EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Contacts Material
- silver alloy (AgNi)
- Local Signalling
- indicator light relay energised LED
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- 8501K
- Returnability
- Yes
- Software Version
- v5.9.4
- Switch Function
- DPDT
- Pep Code
- ENVPEP1310013EN
- Pep Verification Date
- 2022-10-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Ecobilan identifier / ECO-168-
- Recyclability Potential, In %
- 70
- Width Nominal
- 1.4 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, UL Recognized, CSA, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1426203937
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.6038382604
Local Data StatusPublishable
Return IndicatorY
Future Msrp44.61
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typewithout test button
Mounting Supportsocket
Product Or Component Typerelay
Relay Typegeneral purpose
Shape Of Pintubular
Sustainable PackagingNo
Total Lifecycle Carbon Footprint25 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 10 years with a 99% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh33.9888
Energy Model - Installation [A5]Ecobilan identifier / ECO-168-
Energy Model - End Of Life [C1-c4]Ecobilan identifier / ECO-168-
Height Nominal2.66 in
[Uc] Control Circuit Voltage120 V AC
Package Weight(Lbs)95.254 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-131 °F, -40-131 °F
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 25.2954036827
- Environmental Disclosure
- ENVPEP1310013EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1310013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product Compatibility8501NR52, 8501NR51
Reach Free ShvcYes
China Rohs RegulationX
Circularity ProfileENVEOLI1310013EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2022-10-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- relay
Range Of Product8501K
