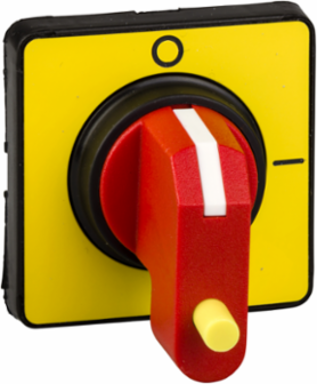

Schneider Electric KCE1YZ TeSys Vario Rotary Handle, 45x45 mm, Red Handle, Yellow Plate, IP65
- MPN: KCE1YZ
- PPN: SCH-KCE1YZ
CAD
$30.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
KCE1YZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a red padlockable handle with a yellow 45x45mm front plate for mounting on door with 4 screw fixing. It operates VN12, VN20, and V02 to V2 switch bodies directly or through a shaft extension. Intended for main and emergency stop usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0077946707090406145, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.003507098790626923, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 29 kg CO2 eq., 28.971796700100345
- Local Publishable Date
- 2025-12-03
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Base Dimension
- 45 x 45 mm
- Device Short Name
- KCE1
- Marking
- 0 - 1
- Product Or Component Type
- rotary handle
- Returnability
- Yes
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 29 kg CO2 eq.
- Handle Color
- red
- Fixing Mode 26
- by 4 screws
- Pep Code
- ENVPEP2211006EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Czech Republic, CZ
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential In %
- 57
- Width Nominal
- 45 mm
- Package Weight(Lbs)
- 53.0 g
- Warranty (In Months)
- 18
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.10607377210864812
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2526733841346168
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Compatibility Codeswitch operator
Fixing Modeby 4 screws
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys
Rotary Handle Padlocking1 padlock 4-6 mm
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Coloryellow
Rotary Handle Padlocking 11 padlock 4-6 mm
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh433.62
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal45 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908160
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211006EN
- Ip Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Product CompatibilityVN20, V02...V2, VN12
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint29.341845625843277
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2211006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- rotary handle
ETIM
- ETIM 8
- EC000229
ETIM 9EC000229
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
