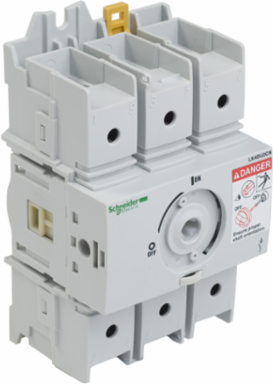

Schneider Electric LK4DU3CN TeSys Non-Fusible Disconnect Switch 25hp 600VAC 3 Pole Max 32A
- MPN: LK4DU3CN
- PPN: SCH-LK4DU3CN
CAD
$181.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TeSys Non-Fusible Disconnect Switch from Schneider Electric is a robust solution for safe and reliable motor disconnection, capable of handling up to 25 horsepower at 600VAC. Designed with three poles and a maximum current rating of 32A, this switch ensures efficient power distribution while prioritizing operator safety. Its high-performance construction makes it an essential component in various industrial applications, serving as a critical safeguard for equipment and personnel alike. Whether for new installations or system upgrades, this disconnect switch underscores Schneider Electric's commitment to quality and innovation in power solutions.
Features
- Custom-engineered to isolate electrical loads safely, this load-break switch functions as a reliable manual motor circuit protector and main panel disconnect. It allows plant technicians to completely make or break power circuits under full load conditions, providing a physical, visible break in the upstream power line to ensure safety isolation during machinery maintenance.
- Belonging to the heavy-duty TeSys LK4 product family, this 3-pole (3P) AC device handles a continuous operational current of up to 30 Amps (UL/CSA) / 32 Amps (IEC) at voltages reaching 600 V AC. It is engineered to comfortably isolate high-demand machinery, delivering heavy-duty motor protection ratings of up to 25 hp at 600V, 20 hp at 480V, and 10 hp at 240V.
- This non-fusible switch features a robust, compact frame capable of handling extreme electrical stresses without structural failure. It delivers a high short-circuit current rating (SCCR) of up to 100 kA when paired downstream with appropriate Type J overcurrent protection fuses, and features a rated short-time withstand current ($I_{cw}$) of 5.5 kA to maintain downstream infrastructure protection.Featuring a highly compressed layout with dimensions of approximately 4.92 x 3.13 x 2.52 inches (125 x 79.5 x 64 mm), this switch reduces required panel space by up to 25% compared to traditional models. Equipped with universal ring-terminal / lug connections, it complies fully with UL 98, CSA C22.2 No. 4, and IEC 60947-3 standards, guaranteeing standard approval for industrial service-entrance installations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Tunisia, United States
Depth64 mm
Complementary Attributes
- Rated Power In Hp
- 10 hp 240 V 30 A AC, 20 hp 480 V 28 A AC25 hp 600 V 28 A AC
Rated Power In W15 kW 400 V18.5 kW 500 V25 kW 690 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Type Of Operating Handle
- external frontal, external right side
- [Ie] Rated Operational Current
- 32 A690 V AC AC-23A IEC32 A400 V AC AC-22A IEC, 32 A400 V AC AC-23A IEC, 32 A690 V AC AC-22A IEC30 A CSA, 30 A UL
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1848
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Control Type
- rotary handle
- Electrical Durability
- 6000 cycles
- Mechanical Durability
- 10000 cycles
- Network Frequency
- 50/60 Hz
- Number Of Poles
- 3P
- Product Name
- TeSys LK
- Range
- TeSys
- Suitability For Isolation
- yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 79.5 mm
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCE, CSA, UL
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Disconnector Device Typenon-fusible disconnect switch
Energy Efficiency OptimizedFalse
Mounting Supportplate
Network TypeAC
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component TypeDisconnect Switch
ReturnabilityYes
Sustainable PackagingNo
Height Nominal125 mm
[Icw] Rated Short-time Withstand Current5.5 kA
[Ui] Rated Insulation Voltage690 V
Connections - Terminalslugs-ring terminals 1 4-4 mm²
Package Weight(Lbs)622.0 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Disconnect Switch
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
