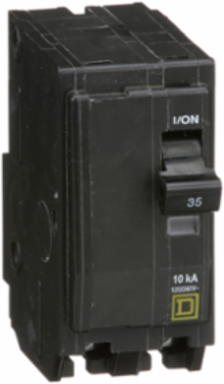

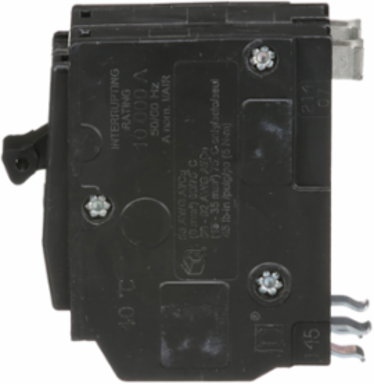

Square D QO235 Mini Circuit Breaker 35A 2 Pole 120/240V AC 10kA Plug-in Mount
- MPN: QO235
- UPC: 785901012429
- PPN: SCH-QO235
CAD
$44.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 35A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

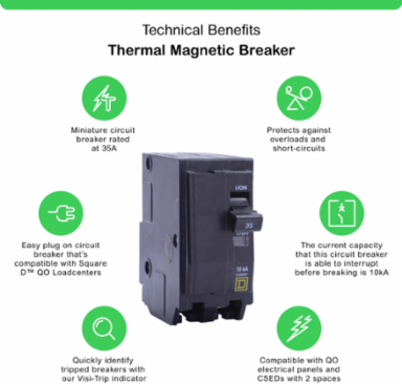

Features
- This premium breaker features Square D’s legendary, patented VisiTrip™ indicator system, which triggers a bright, highly visible red indicator window the exact millisecond the breaker shuts down. This instant visual cue allows maintenance crews and homeowners to locate the tripped branch immediately inside dark panels or electrical closets, completely eliminating comparison confusion and bypassing time-consuming manual toggle testing.
- Delivering a precise 35-amp current rating at 120/240V AC, this thermal-magnetic breaker utilizes a dual-action safety mechanism to safeguard branch circuits. The slow-blow thermal element handles normal, transient startup surges while isolating dangerous overloads, while a fast-acting magnetic coil interrupts short-circuits instantly to protect structural wiring from catastrophic insulation failure.
- Built with a robust 10,000-amp (10 kAIC) interrupting capacity, this protective module is fully equipped to safely withstand and isolate massive fault currents without destructive housing failure. It provides critical, code-compliant safety margins that meet modern Canadian electrical installation standards for residential sub-panels, workshops, and commercial properties.
- Carrying a factory-certified HACR rating, this breaker is specifically optimized to tolerate the high inductive inrush currents associated with heating, air conditioning, refrigeration compressor motors, and electric vehicle charging infrastructure. This tailored trip curve completely avoids nuisance tripping during initial equipment startup spikes, making it the perfect choice for dedicated appliance circuits.
- The load-side connections are equipped with high-performance mechanical box lugs that securely accommodate a wide wire gauge range from 14 AWG down to 8 AWG in both copper and aluminum conductors. The heavy-duty design allows installers to tighten terminations confidently to specified torque parameters, forming a tight, permanent connection that prevents loose-wire arcing faults over decades of continuous operation.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 35 A
- Poles
- 2
- Mounting Type
- Plug-in
- Electrical Connection
- Box lugs
- Tightening Torque
- 5 N.m

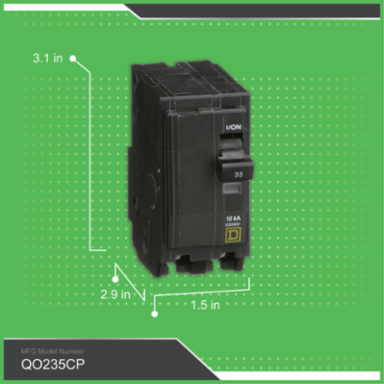

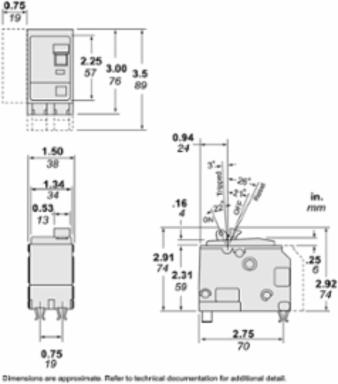

- Width
- 38 mm
- Net Weight
- 0.259 kg
- Compliance
- UL Listed, CSA Certified, RoHS Compliant
Breaking Capacity10 kA 120/240 V AC 50/60 Hz
Operational Voltage120/240 V AC
Circuit Breaker TypeStandard
Wire SizeAWG 8 to AWG 2 copper or aluminum
Height79 mm
Depth74 mm
Ambient Temperature Rating40 °C
