Square D QO342L225G QO Load Center, 3 Phase, 42 Spaces, 42 Circuits, 225A
- MPN: QO342L225G
- UPC: 785901295532
- PPN: SCH-QO342L225G
CAD
$1046.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

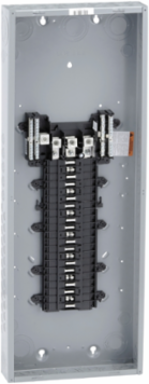

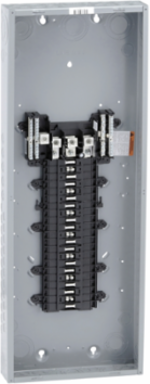

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides 225A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|

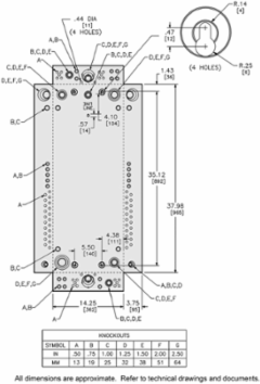

| Depth | 97 mm |
|---|
Complementary Attributes
| Rated Current | 225 A |
|---|
| Line Rated Current | 225 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, OM, SC |
|---|---|
| Number Of Spaces | 42, 42 |
| [Ue] Rated Operational Voltage | 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.9 kg CO2 eq., 0.8772058838 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 47 kg CO2 eq., 46.9684578389 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2531 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Awg Gauge | 6 AWG...300 kcmil aluminium/copper |
| Cover Type | order separately |
| Electrical Connection | lugs |
| Energy Efficiency Optimized | False |
| Load Center Type | Fixed Mains (lugs) |
| Number Of Circuits | 42 |
| Product Or Component Type | Load Center |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 51 kg CO2 eq. |
| Pep Code | ENVPEP2212003EN |
| Pep Verification Date | 2025-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |

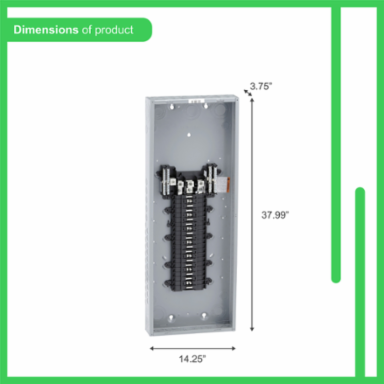

| Height Nominal | 965 mm |
| Certificate Agency | UL Listed |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 7.4172 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.1052 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.1052 |
| Customs Code | 8538100000 |
| Persona Type Names | End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician |
|---|---|
| Phase | 3 phase 4 wires, 3 phase 3 wires |
| Carbon Footprint Of The Distribution Phase [A4] | 3.1738455965, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0379958345, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2026-07-14 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Box Number | 11 |
| Device Composition | grounding bar included (not installed) |

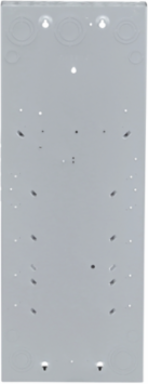

| Enclosure Material | welded sheet steel |
| Installation Direction | vertical |
| Material | tin plated copper: busbar |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | grounding bar |
| Returnability | Yes |
| Surface Finish | baked enamel Gray |
| Tightening Torque | main lugs 250 lb.in, 4 AWG...250 kcmil, aluminium/copperCover 20 lb.in |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Tlaxcala Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 89 |
| Width Nominal | 362 mm |
| Short-circuit Current | 65 kA |
| Package Weight(Lbs) | 9.979 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.0634 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.1758 |
| Water Pollution (M3) Operational Energy Use [B6] | 4.3059 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212003EN |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Ambient Air Temperature For Operation | -5 °C, -5 °C, 40 °C |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 51.1448461537 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2212003EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Phase | 3 phase 4 wires, 3 phase 3 wires |
|---|---|
| Provided Equipment | grounding bar |
| Product Or Component Type | Load Center |
|---|---|
| Range Of Product | QO |
ETIM
| ETIM 8 | EC000214 |
|---|
| ETIM 9 | EC000214 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
