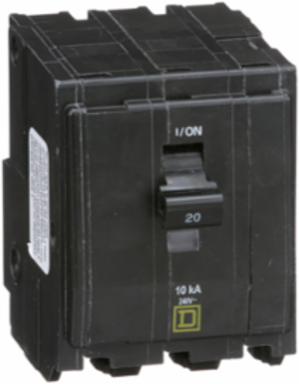

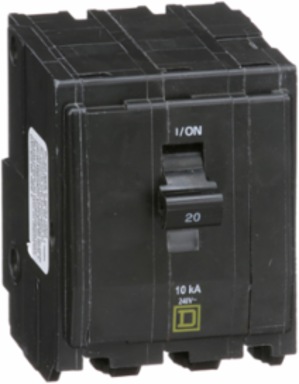

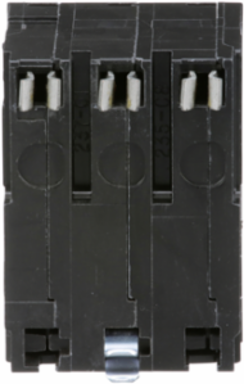

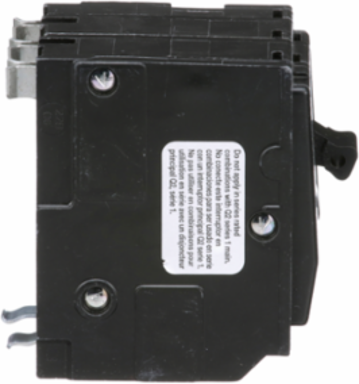

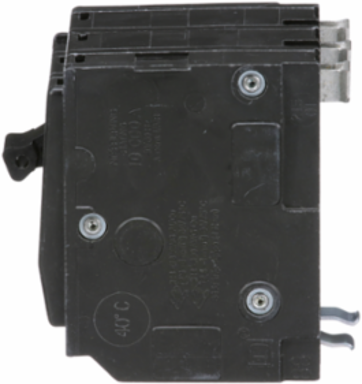

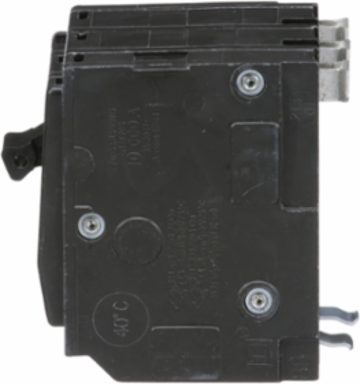

Square D QO320 Mini Circuit Breaker 20A 3-Pole 120/240VAC 10kA Plug-in Mount
- MPN: QO320
- UPC: 785901400684
- PPN: SCH-QO320
CAD
$306.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

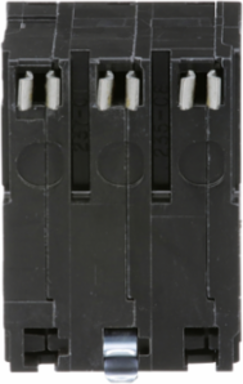

Mini Circuit Breaker 20A 3-Pole 120/240VAC 10kA Plug-in Mount
Features

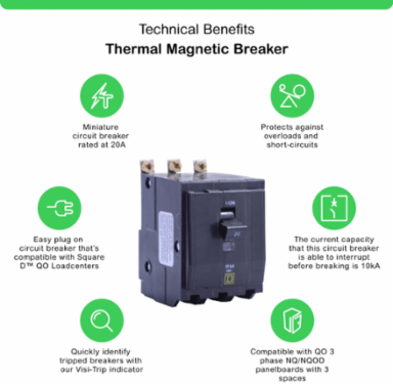

- The QO320 features Schneider Electric s exclusive red Visi-TripTM indicator, which instantly flags a tripped breaker among a row of many. This visual shortcut saves industrial technicians and homeowners significant troubleshooting time, allowing for faster power restoration and less downtime during electrical faults.
- Designed as a dedicated 3-pole breaker, this unit ensures that if any single phase experiences an overcurrent event, all three poles trip simultaneously. This "common trip" functionality is critical for protecting expensive 240V or 208V three-phase motors and machinery from "single-phasing" damage, which can lead to motor burnout and costly repairs.
- This breaker utilizes the industry-standard QO "Plug-On" mounting system, engineered for a secure, bolt-free connection to the bus bar. It is specifically compatible with QO, QOT, and QO3 load centers and NQ-type panelboards, ensuring a fast, reliable installation that maintains the integrity of your Square D distribution system.
- The QO320 utilizes a sophisticated thermal-magnetic trip mechanism that provides a calibrated delay for high-inrush currents typical of small motors or HVAC compressors while offering nearly instantaneous protection against short circuits. This dual-action response ensures your equipment starts reliably while maintaining a rigorous safety envelope for your wiring.
Documentation & Downloads

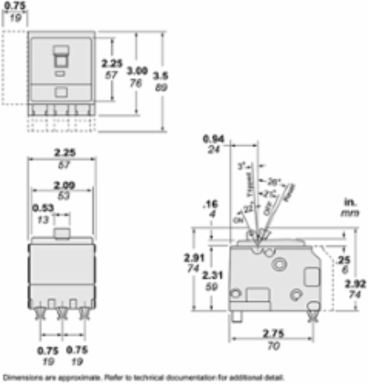

Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 74 mm |
|---|
Complementary Attributes
| Rated Current | 20 A |
|---|
| Line Rated Current | 20 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, OM, SC |
|---|---|
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0705636784 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 2.2554847528 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2534 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...8 AWG copper or aluminium |
| Circuit Breaker Type | standard |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.1 |
| Tightening Torque | 4-4 N.m |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 24.8784 |
| Energy Model - Installation [A5] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Width Nominal | 57 mm |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 386.0 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.0498030477, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.00009642, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 17 kg CO2 eq., 17.3042434783 |
| Local Publishable Date | 2026-04-14 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Electrical Connection | pressure plate |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 3 |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 20 kg CO2 eq. |
| Pep Code | ENVPEP2111016EN |
| Pep Verification Date | 2021-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Height Nominal | 76 mm |
| [Ue] Rated Operational Voltage | 240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536200040 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 19.6801913771 |
| Environmental Disclosure | ENVPEP2111016EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2111016EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 40 °C |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | QO |
|---|
ETIM
| ETIM 8 | EC000042 |
|---|
| ETIM 9 | EC000042 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
