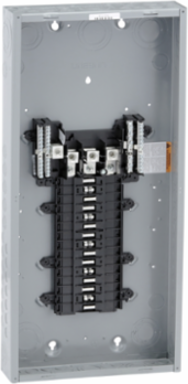

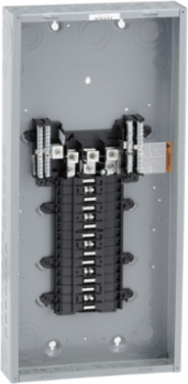

Square D QO330L200G QO Load Center 240V 200A 3 Phase 30 Circuits NEMA 1
- MPN: QO330L200G
- UPC: 785901295501
- PPN: SCH-QO330L200G
CAD
$770.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides 200A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.
Documentation & Downloads
Specifications
Additional
- Voltage
- 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
- Phases
- 3 phases
- Number of Spaces
- 30
- Main Lug Type
- Fixed mains (lugs)
- Tightening Torque Main Lugs
- 250 lb.in

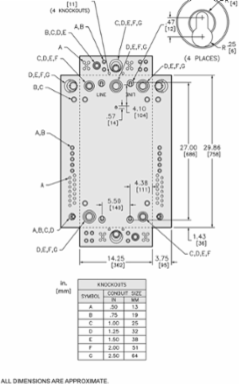

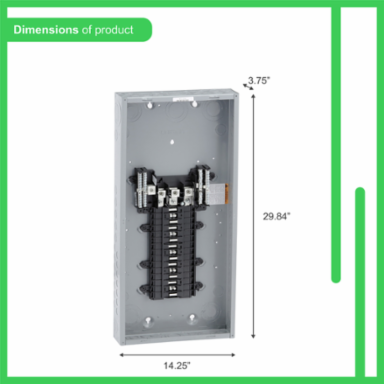

- Width
- 362 mm (14.25 in)
- Net Weight
- 7.91 kg (17.44 lb)
- Finish
- Baked enamel grey
- Operating Temperature Range
- -5 °C to 40 °C (23 °F to 104 °F)
- Mercury Free
- Yes
- Reach Free Of SVHC
- Yes
- Device Composition
- Grounding bar included (not installed)
- Wiring Configuration
- 3-wire, 4-wire
- Number Of Tandem Circuit Breakers
- 0
- Sustainable Offer Status
- Green Premium product
- Product Or Component Type
- Loadcentre
Amperage200 A
Short-Circuit Current65 kA
Number of Circuits30
Wire SizeAWG 6...250 kcmil aluminum/copper
Height758 mm (29.84 in)
Depth97 mm (3.82 in)
MaterialTin plated copper busbar, welded sheet steel enclosure
Enclosure RatingNEMA 1 indoor
ComplianceUL Listed, RoHS Compliant, China RoHS declaration
Toxic Heavy Metal FreeYes
Brand RangeQO
Loadcentre TypeFixed Mains (lugs)
Cover TypeOrder separately
Environmental DisclosureENVPEP2212001
Circularity ProfileN/A
Warranty18 months
