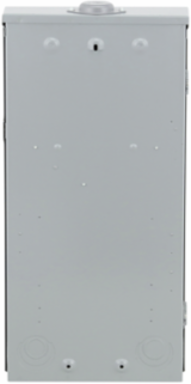

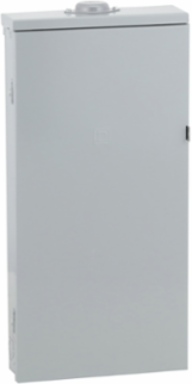

Square D QO330L200GRB LOADCENTRE QO MLO 240V 200A 3PH 30SP
Square D QO330L200GRB LOADCENTRE QO MLO 240V 200A 3PH 30SP
- MPN: QO330L200GRB
- UPC: 785901295525
- PPN: SCH-QO330L200GRB
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1499.78/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides 200A fixed main lugs in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated.
Specifications
Environment
- Product Certifications
- UL listed
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 3R outdoor
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212001
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Height
- 758 mm
- [Ue] Rated Operational Voltage
- 208Y/120 V AC || 240/120 V delta AC || 240 V delta AC
- Number Of Circuits
- 30
- Network Number Of Phases
- 3 phases
- Number Of Tandem Circuit Breakers
- 0
- Surface Finish
- baked enamel grey
- Enclosure Material
- welded galvannealed steel
- Width
- 375 mm
- Loadcentre Type
- Fixed Mains (lugs)
- Box Number
- 6R
Tightening Torquemain lugs 250 lb.in, AWG 4...250 kcmil, aluminum/copper
Electrical Connectionlugs
Number Of Spaces30
Short-Circuit Current65 kA
Materialtin plated copper: busbar
[In] Rated Current200 A
Awg GaugeAWG 6...300 kcmil aluminum/copper
Wiring Configuration3-wire || 4-wire
Device Compositiongrounding bar included (not installed)
Specifications
- Range Of Product
- QO
- Enclosure Type
- weatherproof enclosure
Product Or Component TypeLoadcentre
Cover Typesurface cover
