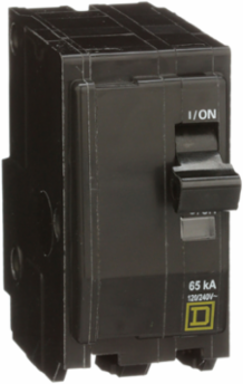

Square D QH230 Mini Circuit Breaker 30A 2 Pole 120/240V AC 65kA Plug-In
- MPN: QH230
- UPC: 785901012931
- PPN: SCH-QH230
CAD
$493.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mini Circuit Breaker 30A 2 Pole 120/240V AC 65kA Plug-In
Documentation & Downloads
Specifications
Additional
- Current Rating
- 30 A
- Interrupt Rating
- 65 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Plug-in
- Wire Size
- AWG 14...AWG 8 copper or aluminum

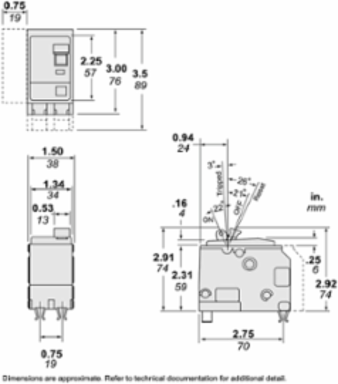

- Height
- 76 mm
- Depth
- 74 mm
- Electrical Connection
- Pressure plate
- Range of Product
- QO
- China RoHS Compliance
- Out of scope
- Sustainable Offer Status
- Green Premium product
- Mercury Free
- Yes
- Product Certifications
- UL Listed, CSA Certified
- Warranty
- 18 months
Voltage120/240 V AC
Number of Poles2P
Circuit Breaker TypeStandard
Tightening Torque4.6 N m
Width38 mm
Net Weight0.277 kg
Circuit Breaker ApplicationHACR Rated
RoHS ComplianceCompliant with Exemptions
Reach RegulationContains SVHC above threshold
Toxic Heavy Metal FreeYes
Halogen Content PerformanceHalogen free product
Ambient Air Temperature For Operation40 C
Product Or Component TypeMiniature circuit-breaker
