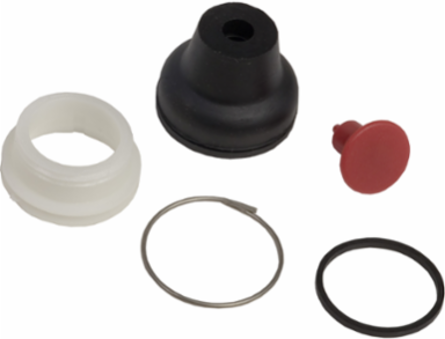

Schneider Electric XACB9214 Booted Pushbutton Head - Red, 16 mm, IP65, -25 to +70 C
- MPN: XACB9214
- PPN: SCH-XACB9214
CAD
$11.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This booted pushbutton head from Schneider Electric is a reliable component designed for automation and control applications. With a striking red color and a compact 16 mm size, it not only ensures visibility but also offers robust functionality. Rated at IP65, this pushbutton is well-suited for environments exposed to dust and water, making it an excellent choice for various industrial settings. It operates comfortably within a temperature range of -25 to +70 C, ensuring consistent performance in both extreme heat and cold. Whether integrated into pendant stations or other pilot devices, this pushbutton head exemplifies durability and efficiency, streamlining your operation needs effortlessly.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France, United States |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | IEC 60947-5-1, CSA C22.2 No 14 |
| Local Publishable Date | 2026-03-31 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Component Name | XACB |
| Marking | unmarked |
| Operator Additional Information | booted |
| Product Or Component Type | head for push-button |
| Returnability | No |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Vibration Resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Cap/Operator Or Lens Colour | red |
| Package Weight(Lbs) | 6.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Operating Travel | 16 mm |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony XAC |
| Sale Per Indivisible Quantity | 10 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP0709005EN |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Product Compatibility | XESD1181, XESD1291, XESD1281, XESD1191 |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP0709005EN |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP0709005EN |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | head for push-button |
|---|
| Range Of Product | Harmony XAC |
|---|
ETIM
| ETIM 8 | EC000221 |
|---|
| ETIM 9 | EC000221 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
