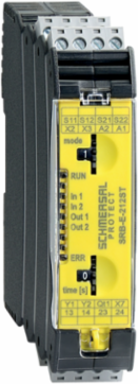

Schmersal 103014308 Safety Monitoring Module with 3 Safety Contacts, IP20, 24 VDC
- MPN: 103014308
- PPN: SCM-103014308
CAD
$717.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

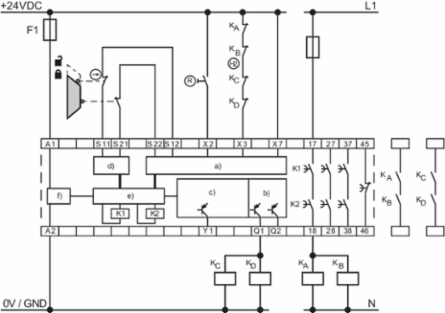

Description
Safety Monitoring Module with 3 Safety Contacts, IP20, 24 VDC
Features
- Plug-in screw terminals with coding
- STOP 0 / 1 Function
- 1 oder 2-channel control
- 2 Safety outputs STOP 0
- 3 safety contacts STOP 1
- Drop-out delay 0 … 30
Documentation & Downloads
Specifications
Key Specifications
| Width | 22.5 mm |
|---|---|
| Depth | 115 mm |
| Height | 98 mm |
|---|
Electrical data - Relay outputs (auxiliary contacts)
| Switching capacity, maximum | 24 VDC |
|---|
| Switching capacity, maximum | 1 A |
|---|
Electrical data
| Operating voltage | 24 VDC -20 % / +20 % |
|---|---|
| Rated operating voltage | 24 VDC |
| Rated control voltage at DC, maximum | 28.8 VDC |
| Contact resistance, maximum | 0.1 Ω |
| Drop-out delay in case of power failure, typically | 10 ms |
| Pull-in delay at automatic start, maximum, typically | 150 ms |
| Switching frequency, maximum | 0.3 Hz |
| Ripple voltage | 10 % |
|---|---|
| Rated AC voltage for controls at DC minimum | 19.2 VDC |
| Electrical power consumption | 3 W |
| Note (Contact resistance) | in new state |
| Drop-out delay in case of emergency, typically | 10 ms |
| Pull-in delay at RESET, typically | 150 ms |
| Material of the contacts, electrical | Ag-Ni, self-cleaning, positive drive |
Mechanical data - Dimensions
| Width | 22.5 mm |
|---|---|
| Depth | 115 mm |
| Height | 98 mm |
|---|
Ambient conditions - Insulation values
| Rated impulse withstand voltage U | 4 kV |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 2 |
Electrical data - Digital Output
| Voltage, Utilisation category DC-12 | 24 VDC |
|---|
| Current, Utilisation category DC-12 | 0.1 A |
|---|
General data - Features
| Stop-Category | 0 | 1 |
|---|---|
| Cross-circuit detection | Yes |
| Start input | Yes |
| Automatic reset function | Yes |
| Earth connection detection | Yes |
| Integral system diagnostics, error code | Yes |
| Number of LEDs | 6 |
| Number of normally open (NO) | 1 |
| Number of safety digital outputs, Stop 0 | 2 |
| Wire breakage detection | Yes |
|---|---|
| Removable Terminals | Yes |
| Feedback circuit | Yes |
| Reset edge detection | Yes |
| Integral system diagnostics, status | Yes |
| Number of auxiliary contacts | 1 |
| Number of normally closed (NC) | 2 |
| Number of Safety contacts, STOP 1 | 3 |
| Number of signalling outputs | 1 |
General data
| Standards | EN IEC 62061 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 61508 | EN IEC 60204-1 | EN IEC 60947-1 |
|---|---|
| Gross weight | 170 g |
| Enclosure material | Glass-fibre reinforced thermoplastic, ventilated |
|---|
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 62061 | EN IEC 61508 |
|---|---|
| Category | 4 |
| PFH value | 1.25 x 10⁻⁸ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Common Cause Failure (CCF), minimum | 65 |
| PFD value | 2.42 x 10⁻⁵ |
| Performance Level, up to | e |
|---|---|
| Diagnostic Coverage (DC) Level | > 94 % |
| PFD value | 5.30 x 10⁻⁵ |
| Mission time | 20 Year(s) |
| PFH value | 2.66 x 10⁻⁹ /h |
Electrical data - Safety digital outputs
| Voltage drop U | 0.5 V |
|---|---|
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Leakage current I | 1 mA |
|---|---|
| Current, Utilisation category DC-12 | 2 A |
| Current, Utilisation category DC-13 | 2 A |
Other data
| Note (applications) | Safety sensor | Guard system | hinged safety guard | Emergency-Stop button | Pull-wire emergency stop switches | Safety light curtain | Safety light barriers |
|---|
Ambient conditions
| Degree of protection of the enclosure | IP40 |
|---|---|
| Degree of protection of clips or terminals | IP20 |
| Storage and transport temperature, minimum | -40 °C |
| Resistance to vibrations | 10 ... 55 Hz, Amplitude 0.35 mm |
| Degree of protection of the mounting space | IP54 |
|---|---|
| Ambient temperature | -25 ... +60 °C |
| Storage and transport temperature, maximum | +85 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | rigid or flexible | Screw connection, plug-in |
|---|---|
| Cable section, minimum | 0.25 mm² |
| Tightening torque of Clips | 0.5 Nm |
| Terminal designations | IEC/EN 60947-1 |
|---|---|
| Cable section, maximum | 2.5 mm² |
Electrical data - Safe relay outputs
| Voltage, Utilisation category AC-15 | 230 VAC |
|---|---|
| Voltage, Utilisation category DC-13 | 24 VDC |
| Switching capacity, minimum | 10 VDC |
| Switching capacity, maximum | 250 VAC |
| Current, Utilisation category AC-15 | 4 A |
|---|---|
| Current, Utilisation category DC-13 | 4 A |
| Switching capacity, minimum | 10 mA |
| Switching capacity, maximum | 6 A |
Mechanical data
| Mechanical life, minimum | 10,000,000 Operations |
|---|
| Mounting | Snaps onto standard DIN rail to EN 60715 |
|---|
Approvals - Standards
| Certificates | TÜV | cULus |
|---|
Electrical data - Electromagnetic compatibility (EMC)
| EMC rating | EMC-Directive |
|---|
Electrical data - Digital inputs
| Conduction resistance, maximum | 40 Ω |
|---|
Status indication
| Indicated operating states | Internal operating voltage U | Baustein-Status | Fault codes |
|---|
