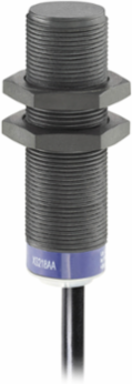

Telemecanique Sensors XS218AAMAL2 Inductive proximity sensors XS, inductive sensor XS2 M18, L60mm, PPS, Sn12mm, 24...240VAC/DC, cable 2 m
Telemecanique Sensors XS218AAMAL2 Inductive proximity sensors XS, inductive sensor XS2 M18, L60mm, PPS, Sn12mm, 24...240VAC/DC, cable 2 m
- MPN: XS218AAMAL2
- PPN: TES-XS218AAMAL2
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$166.77/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. This sensor is part od the food and beverage processing series. It is a cylindrical, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a plastic cylindrical boby and a 2m long cable. It has a sensing distance of 12mm. Two-wire, 24V to 240V AC/DC , NO function, discrete output signal.
Specifications
Environment
- Product Certifications
- CCC || CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-85 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1110045
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum Delay Response
- 0.5 ms
- Operating Zone
- 0-9.6 mm
- Threaded Length
- 51 mm
- Length
- 60 mm
- Maximum Residual Current
- 0.8 mA open state
- Thread Type
- M18 x 1
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 30 ms
- Wire Insulation Material
- PVC
- Enclosure Material
- PPS
- Front Material
- PPS
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<5.5 V closed)
MarkingCE
Net Weight0.1 kg
Switching Frequency<= 1000 Hz DC || <= 25 Hz AC
Sensing Range> 0.31...0.59 in (> 8...15 mm)
Maximum Delay Recovery0.5 ms
Supply Voltage Limits20-264 V AC/DC
Detection Facefrontal
Cable Composition2 x 0.34 mm²
Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Sensor Name
- XS2
- Size
- 60 mm
- Ip Degree Of Protection
- IP68 double insulation conforming to IEC 60529 || IP69K conforming to DIN 40050
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- 5...200 mA DC || 5...300 mA AC
- Market Segment
- pharmaceutical
- Device Application
- food and beverage
[Us] Rated Supply Voltage24...240 V AC 50/60 Hz || 24...240 V DC
Type Of Output Signaldiscrete
Cable Length2 m
Materialplastic
Wiring Technique2-wire
Series NameApplication
[Sn] Nominal Sensing Distance12 mm
Detector Flush Mounting Acceptancenon flush mountable
Sensor Designcylindrical M18
Output Circuit TypeAC/DC
