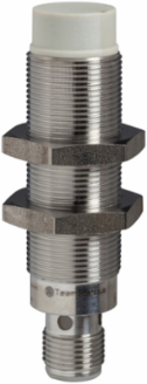

Telemecanique Sensors XS218SANAM12 Inductive proximity sensors XS, inductive sensor XS2 M18, L70mm, stainless, Sn12mm, 12...24 VDC, M12
- MPN: XS218SANAM12
- PPN: TES-XS218SANAM12
CAD
$154.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. This sensor is part od the food and beverage processing series. It is a cylindrical, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a stainless steel cylindrical boby and a M12 connector. It has a sensing distance of 12mm. Three-wire, DC supply, 12V to 24V, NO function, NPN solid-state output .
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- NPN
- Type Of Output Signal
- discrete
- Sensor Name
- XS2
- Size
- 70 mm
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69K DIN 40050
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Market Segment
- pharmaceutical
- Device Application
- food and beverage
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Materialstainless steel
Wiring Technique3-wire
Series NameApplication
[Sn] Nominal Sensing Distance12 mm
Detector Flush Mounting Acceptancenon flush mountable
Sensor Designcylindrical M18
Output Circuit TypeDC
Complementary
- Current Consumption
- <= 10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Switching Frequency
- <= 1000 Hz
- Sensing Range
- > 8...15 mm
- Maximum Delay Recovery
- 0.7 ms
- Supply Voltage Limits
- 10-36 V DC
- Enclosure Material
- stainless steel 316 L
Maximum Delay Response0.3 ms
Operating Zone0-9.6 mm
Threaded Length42 mm
Length70 mm
Thread TypeM18 x 1
Differential Travel1...15% of Sr
Maximum Delay First Up10 ms
Detection Facefrontal
Front MaterialPPS
Environment
- Product Certifications
- CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-85 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
