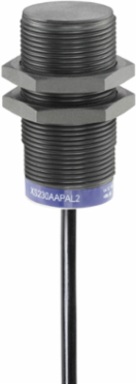

Telemecanique Sensors XS230AAMAL2 Inductive proximity sensors XS, inductive sensor XS2 M30, L60mm, PPS, Sn22mm, 24...240VAC/DC, cable 2 m

MPN: XS230AAMAL2
PPN: TES-XS230AAMAL2

$180.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. This sensor is part of the food and beverage processing series. It is a cylindrical, non flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a plastic cylindrical boby and a 2m long cable. It has a sensing distance of 22mm. Two-wire, 24V to 240V AC/DC , NO function, discrete output signal.

Documentation & Downloads

Specifications

Key Specifications

Electrical Connection	cable
Discrete Output Function	1 NO
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Name	XS2
Size	60 mm
Ip Degree Of Protection	IP68 double insulation IEC 60529 \|\| IP69K DIN 40050
Body Type	fixed
Sensor Type	inductive proximity sensor
Switching Capacity In Ma	5...200 mA DC \|\| 5...300 mA AC
Market Segment	pharmaceutical
Device Application	food and beverage

[Us] Rated Supply Voltage	24...240 V AC 50/60 Hz \|\| 24...240 V DC
Type Of Output Signal	discrete
Cable Length	2 m
Material	plastic
Wiring Technique	2-wire
Series Name	Application
[Sn] Nominal Sensing Distance	22 mm
Detector Flush Mounting Acceptance	non flush mountable
Sensor Design	cylindrical M30
Output Circuit Type	AC/DC

Complementary

Maximum Delay Response	0.5 ms
Operating Zone	0-17.6 mm
Threaded Length	51 mm
Length	60 mm
Switching Frequency	<= 25 Hz AC \|\| <= 300 Hz DC
Sensing Range	> 15...40 mm
Maximum Delay Recovery	2 ms
Supply Voltage Limits	20-264 V AC/DC
Detection Face	frontal
Cable Composition	2 x 0.34 mm²

Status Led	output state 1 LED yellow)
Maximum Voltage Drop	<5.5 V closed)
Marking	CE
Maximum Residual Current	0.8 mA open state
Thread Type	M30 x 1.5
Differential Travel	1...15% of Sr
Maximum Delay First Up	30 ms
Wire Insulation Material	PVC
Enclosure Material	PPS
Front Material	PPS

Environment

Product Certifications	CSA \|\| UL \|\| CCC
Vibration Resistance	25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-85 °C

Ambient Air Temperature For Operation	-25-85 °C
Shock Resistance	50 gn 11 ms IEC 60068-2-27

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111006EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
